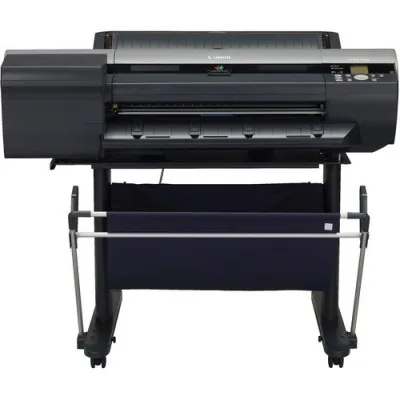

Canon imagePROGRAF iPF6450 Graphic Arts Printer

Product Description

- Print Resolution: 2400x1200dpi
- Roll & Sheet Media Up To 24.0" Wide
- Ethernet Connectivity
- Replace Ink During Printing
- Internal Memory: 384MB
- Embedded 250GB Hard Drive
- Plug-In For Photoshop, Digital Photo Pro
- Plug-In For Microsoft Office

Printing Method

Printing Technology12-color 24.0" inkjet printer with non-firing nozzle detection & compensation

Maximum Resolution2400 x 1200 dpi

Minimum Ink Droplet Size4.0 pl

Ink TypePigment-based

Ink PaletteCyan, Photo Cyan, Magenta, Photo Magenta, Yellow, Black, Matte Black, Red, Green, Blue, Gray, Photo Gray

Ink Cartridge Configuration12 cartridges, 6 cartridges per printhead

Number of NozzlesPer Color: 2,560 nozzles
Total: 30,720 nozzles

Nozzle Pitch1200 dpi

Printer LanguageGARO

Paper Handling

Paper-Feed MethodTop-loading manual feed, front-loading manual feed

Maximum Printable Area24.0" x 59.0' (60.96 cm x 18.0 m)

Paper SizesStandard: Letter, Legal, Ledger, Super B, 10.0 x 12.0", 10.0 x 15.0", 12.0 x 16.0", 13.0 x 22.0", 14.0 x 17.0", 18.0 x 22.0", 16.0 x 20.0", 20.0 x 24.0", 20.0 x 30.0", 300 x 900 mm, A1, A2, A2+, A3, A3+, A4, B2, B3, B4, JIS B2, JIS B3, JIS B4, ANSI D, ANSI C, ARCH A, ARCH B, ARCH C, ARCH D, DIN C2, DIN C3. DIN C4
Custom - Sheet (Top Load): 8.0 x 11.0 to 24.0 x 63.0" (20.32 x 27.94 to 60.96 x 160.0 cm)
Custom - Sheet (Front Load): 8.0 x 16.5 to 24.0 x 36.0" (20.32 x 42.0 to 60.96 x 91.44 cm)
Roll: 8.0 x 8.0" to 24.0" x 59.0' (20.32 x 20.32 cm to 60.96 cm x 18.0 m)

Borderless Printing WidthA1, A2, A2+, A3+, B2, B4, 10.0" (25.4 cm), 14.0" (35.56 cm), 16.0" (40.64 cm), 17.0" (43.18 cm), 24.0" (60.96 cm)

Maximum Roll Print Length59.0' (18.0 m)

Paper TypesPlain, coated, photo, proofing, art, sign/CAD

Media ThicknessSheet (Top-Load): 3.2 to 31.4 mil (0.07 to 0.8 mm)
Sheet (Front-Load): 19.6 to 59.0 mil (0.5 to 1.5 mm)
Roll: 3.2 to 31.4 mil (0.07 to 0.8 mm)

CutterAutomatic/Manual

Maximum Media Roll Diameter5.9" (150 mm)

Core Size2.0 or 3.0" (5.08 or 7.62 cm)

Connectivity

InterfaceUSB: Hi-Speed USB 2.0
Network: 10/100/1000 Base-T/TX Ethernet

OS CompatibilityWindows: Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), Server 2003 (32/64-bit), Server 2008 (32/64-bit)
Mac: OS X 10.5.8 to 10.7x
Solaris 9
Red Hat 9

Internal Memory384 MB

Hard Disk Capacity250 GB

Physical

Control PanelLCD
LEDs: Cut Sheet, Roll Media, Message, Data
Buttons: Power, Stop, Navigate, OK, Back, Menu, Cut, Feed, Load, 4 directional arrows

Power Requirements100 to 240 V AC (50 to 60 Hz)

Power ConsumptionMaximum: 100 W
Standby: ≤ 6.0 W
Power Off: ≤ 0.5 W

Acoustic NoiseSound Pressure (Printing): ≤ 47 dB(A)
Sound Pressure (Standby): ≤ 35 dB(A)
Sound Power (Printing): ≤ 6.4 B(A)

CertificationsInternational Energy Star Program, Eco Mark (Japan), Law on Promoting Green Purchasing (Japan), GPN, RoHS (Europe/China), Eco Declaration (Europe), WEEE (Europe/India), U.S. Presidential Directives, ErP Directive

Temperature / HumidityOperating Temperature: 59 to 86 °F (15 to 30 °C)
Operating Humidity: 10 to 80%

Dimensions (WxDxH)48.3 x 34.3 x 39.4" (122.68 x 87.12 x 100.08 cm)

Weight
154 lb (69.85 kg) including stand

Packaging Info

Package Weight154.0 lb

Box Dimensions (LxWxH)

53.0 x 37.0 x 36.5"
