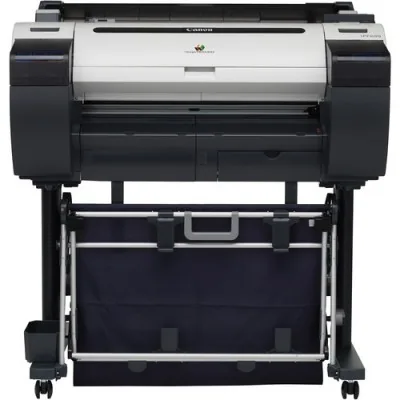

Canon imagePROGRAF iPF680 24" Large-Format Inkjet Printer

Product Description

- Max Resolution: 2400 x 1200 dpi
- Max Print Size: 24" x 59'
- Print Speed: 24 x 36" Drawing in 25 sec
- Five-Color Dye/Pigment Reactive Ink Set
- Sub-Ink Tank System
- Economy Print Mode
- Optimized Module for AutoCAD
- PosterArtist Lite Software
- USB 2.0 and Ethernet Connectivity

Printing Method

Print TechnologyFINE (Full-Photolithography Inkjet Nozzle Engineering)

Print Resolution2400 x 1200 dpi

Print SpeedArch D 24 x 36" (61.0 x 91.4 cm): 25 seconds in Economy Mode

Print HeadPF-04

Ink Droplet Size4 pl

Line Accuracy±0.1% or less

Minimum Line Weight0.79 mil (0.02 mm)

Number of NozzlesMatte Black: 5,120 nozzles
Other Colors: 2,560 nozzles per color

Nozzle Pitch1200 dpi x two rows

Printhead Swath1.07" (27.2 mm)

Ink TypesDye: Cyan (C), Magenta (M), Yellow (Y), Black (K)
Pigment: Matte Black (MBK)

Compatible Ink TanksPFI-107 (130 ml): C, M, Y, BK, MBK
PFI-207 (300 ml): C, M, Y, BK, MBK

Ink Tank CapacityStarter: 130 ml (MBK), 90 ml (C, M, Y, BK)
Replacement: 130 ml (PFI-107) or 300 ml (PFI-207)

Ink Supply MethodTubing system with sub-ink-tanks for continuous ink supply

Nozzle Recovery SystemNon-firing nozzle detection and compensation

Media Handling

Paper HandlingRoll Feed: One roll, top-loading, front output
Cut Sheet: One sheet, top-loading front output

Media WidthRoll Feed: 10-24" (254-610 mm)
Cut Sheet: 8-24" (203-610 mm)

Maximum Print LengthRoll Feed: 59' (18 m)
Cut Sheet: 63" (1.6 m)

MarginsRoll Feed, All Sides: 0.12" (3 mm) or 0" (0 mm) for borderless
Cut Sheet, Leading, Sides (Left and Right): 0.12" (3 mm)
Cut Sheet, Trailing: 0.91" (23 mm)

Borderless Printing WidthRoll Media: 10" (25.4 cm), B4, A3, 14" (35.6 cm), A2, 17" (43.2 cm), B2, A1, 24" (61.0 cm)

Media CutterDurable dual-blade rotary cutter

Media Thickness2.8-31.4 mil (0.07-0.80 mm)

Core Sizes2" (5.1 cm) and 3" (7.6 cm)

Maximum Media Roll Diameter5.9" (150 mm)

OutputFlat stacker, basket

Output Capacity20 sheets with stackable configuration

Connectivity

InterfacesUSB 2.0
10/100/1000Base-T/TX

ControllerL-COA Processor

Memory256 MB

Internal Hard DriveNone

Mail ServerNone

Compatible Operating SystemsWindows XP (32-bit), Server 2003 (32/64-bit), Server 2008 (32/64-bit), Server 2012 (64-bit), Vista (32/64-bit), 7 (32/64-bit), 8 (32/64-bit)
Macintosh OS X 10.6.8-10.9.x

Print LanguagesGARO (Canon proprietary), HP-GL/2, HP RTL

ProtocolsTCP/IP (IPv4/IPv6), IPX/SPX, AppleTalk, SNMP (Canon MIB supported), HTTP

Physical

Acoustic NoiseOperation: 47 dB
Standby: 35 dB or less
Acoustic Power: 64 dB

Power Requirements100-240 VAC, 50-60 Hz

Power ConsumptionMaximum: 140 W or less
Standby: 5 W or less
Power Off: 1 W or less (Executive Order Compliant)

CertificationsElectrical Safety Regulations: TUV (USA), cTUV (USA), TUV.S mark, CB certification (others)
Electromagnetic Interface Regulations: FCC Class B (USA), IC Class B (Canada)
Environmental: ENERGY STAR (worldwide), RoHS Directive

Operating ConditionsTemperature: 59 to 86°F (15 to 30°C)
Humidity: 10 to 80%, non-condensing

Dimensions (WxDxH)Basket Open: 42 x 39 x 35" (106.7 x 99.1 x 88.9 cm)
Basket Extended for Flatbed Stacking: 42 x 39 x 43" (106.7 x 99.1 x 109.2 cm)

Weight125 lb (56 kg) with stand
