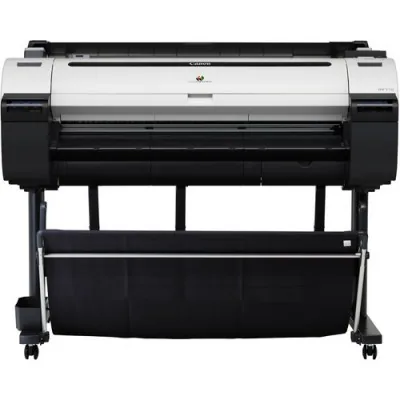

Canon imagePROGRAF iPF770 36" Large-Format Inkjet Printer

Product Description

- Max Resolution: 2400 x 1200 dpi
- Max Printable Width: 36"
- Print Speed: 23.4 x 33.1" from 25 sec
- High-Density Print Head Technology
- Five-Color Dye/Pigment Reactive Ink Set
- Sub-Ink Tank System
- Economy Print Mode
- MS Office Plug-In & AutoCAD Module
- PosterArtist Lite Software
- USB 2.0 and Ethernet Connectivity

Printing Method

Printing TechnologyInkjet

Maximum Resolution2400 x 1200 dpi

Print SpeedA1, 23.4 x 33.1" (59.4 x 84.1 cm) in 25 sec in Draft mode

Print ColorCyan, magenta, yellow, black, matte black

Minimum Ink Droplet Size4 picoliter

Ink TypePigment: Matte black
Dye: Cyan, magenta, yellow, black

Ink Cartridge Configuration5 individual cartridges

Compatible Ink CartridgesPFI-107C Cyan Dye Ink Cartridge (130 ml)
PFI-107M Magenta Dye Ink Cartridge (130 ml)
PFI-107Y Yellow Dye Ink Cartridge (130 ml)
PFI-107BK Black Dye Ink Cartridge (130 ml)
PFI-107MBK Matte Black Pigment Ink Cartridge (130 ml)

Number of NozzlesTotal: 15,360
Matte Black: 5,120
Cyan, Magenta, Yellow, Black: 2,560 each color

Nozzle Pitch1200 dpi
Non-firing nozzle detection and compensation

Media Handling

Paper HandlingRoll feed
Cut sheet

Paper-Feed MethodTop-loading, front output

Paper SizesCut Sheet: 8-36" (20.3-91.4 cm) wide
Roll Feed: 10-36" (25.4-91.4 cm) wide

Maximum Paper LengthCut Sheet: 63" (1.6 m)
Roll Feed: 59' (18 m)

Maximum Media Roll Diameter5.9" (15 cm)

Borderless Printing Width10" (25.4 cm), B4 (13.9" / 35.3 cm), A3 (11.7" / 29.7 cm), 14" (35.6 cm), A2 (16.5" / 42.0 cm), 17" (43.2 cm), B2 (20.3" / 51.5 cm), A1 (23.4" / 59.4 cm), 24" (61.0 cm), A0 (33.1" / 84.1 cm), B1 (28.7" / 72.8 cm), 36" (91.4 cm)

Media Thickness2.8-31.4 mil (0.07-0.80 mm)

Paper CapacityOne sheet or one roll

Connectivity

InterfacesUSB 2.0
Ethernet

Direct Print CapableYes, via software

OS CompatibilityWindows XP (32-bit), Vista, 7, 8
Max OS X 10.6.8-10.9

Memory256 MB

Printer LanguageGARO (Canon proprietary)

Physical

Power Requirements100-240 VAC, 50-60 Hz

Power ConsumptionMaximum: 140 W
Standby: 5 W
Power Off: 0.5 W

Acoustic NoiseOperation: 48 dB(A)
Standby: 35 dB(A)
Acoustic Power: 6.5 B

Operating ConditionsTemperature: 59 to 86°F (15 to 30°C)
Humidity: 10 to 80%, non-condensing

Dimensions42 x 51 x 34" (106.7 x 129.5 x 86.4 cm) with basket open
42 x 51 x 28" (106.7 x 129.5 x 71.1 cm) with basket closed

Weight139 lb (63 kg) with stand

Packaging Info

Box Dimensions (LxWxH)55.5 x 43.0 x 31.0"
