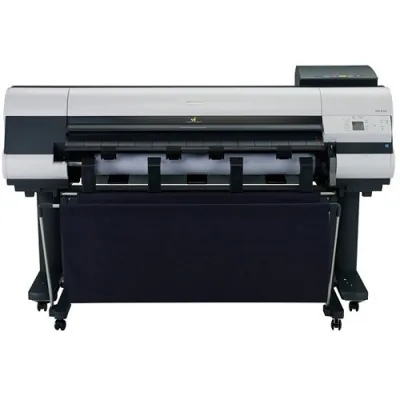

Canon imagePROGRAF iPF830 Large Format Printer

Product Description

The Canon imagePROGRAF iPF830 Large Format Printer is a 44" wide printing system designed to enhance productivity for medium to large workgroups, with high speed throughput. The imagePROGRAF iPF830 printer is a production printing solution with high line accuracy, a 320GB hard drive, excellent media handling, and a support for HP-GL/2 and HP RTL files. It is an easy-to-use production printing solution for professionals with a need for producing intricately detailed full-color renderings, CAD drawings, GIS maps and other large-format output.

The built-in 320GB hard drive makes handling multiple complex jobs simple, especially in shared printer environments. You can relieve workload from your computer, store and retrieve print jobs with the touch of a button, and utilize a Remote User Interface and password-protected mailboxes to keep your workgroup productive. The iPF830 printer's Economy Print Mode helps lower cost-per-print while the sub-ink tank system enables hot-swap ink replacement for continuous printing.

- Print Longer Without Interruption
- High-Speed Printing with L-COA processor
- Precision Printing with a high-density PF-04 print head
- Gigabit Ethernet compatible
- 320GB hard drive
- High chroma magenta ink
- Reactive ink system
- Direct print & share
- imagePROGRAF Print Utility
- Accounting Manager
- Canon Print Driver
- Economy Print Mode
- Optimized module for AutoCAD
- Print plug-in for Microsoft Office
- PosterArtist Lite

Printing Technology5-Color 44" (111.8 cm) printer

Nozzle Pitch1200 dpi

Number of NozzlesTotal: 15,360
MBK: 5,120
C, M, Y, BK: 2,560 nozzles each

Print Resolution2400 x 1200 dpi (Max)

OS CompatibilityWindows® (XP 32-bit/Vista/7/8/8.1)
Macintosh® (OSX 10.6.8 - 10.10)

Standard InterfaceHigh-Speed USB 2.0
10/100/1000 Base-T/TX

Minimum Ink Droplet Size4.0 pl

Ink Tank CapacityInk Capacity: 330 ml , 700 ml per color

Ink TypeDye/Pigment Reactive Ink

Hard Drive320 GB

Media WidthCut Sheet: 8 to 44" (20.3 to 111.8 cm)
Roll Feed: 10 to 44" (25.4 to 111.8 cm)

Media Thickness2.8 to 31.5 mil (0.07 to 0.8 mm)

Maximum Roll Print LengthRoll Feed: 59' (18 m)

Maximum Media Roll Diameter5.9" (15.1 cm)

Borderless Printing Width10, 14, 17, 24, 36, 42" (25.4, 35.6, 43.2, 61, 91.4, 106.7 cm)

Paper-Feed MethodRoll Feed: One roll, front loading, front output
Cut Sheet: One sheet, front loading, front output

LanguagesGARO (Canon Proprietary), HP-GL/2, HP-RTL

Noise LevelOperation: 52 dB (A) or less
Standby: 35 dB (A) or less
Acoustic Power: Approx. 6.8 Bels or less

PowerSource: 100 to 240 VAC (50 to 60 Hz)

Power ConsumptionMaximum: 190 W or less
Standby: 5 W or less
Power Off: 0.5 W or less (compliant with Executive Order)

User ReplaceablePrint Head: PF-04
Maintenance Cartridge: MC-10, MC-09
Ink Tanks:
PFI-307 (330 ml: C, M, Y, BK, MBK)
PFI-707 (700 ml: C, M, Y, BK, MBK)

SoftwareCanon Printer Driver, Printer Driver Extra Kit (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Direct Print & Share, imagePROGRAF Print Utility4, PosterArtist Lite (PC Only), Print Plug-in for Microsoft Word/Excel/PowerPoint (PC only), Status Monitor, Media Configuration Tool, Optimized Module for AutoCAD

EnvironmentalTemperature: 59 to 86°F (15 to 30°C)
Humidity: 10 to 80%

Dimensions (WxDxH)75 x 51 x 45" (190.5 x 129.5 x 114.3 cm)

Weight380 lb (172.4 kg)

Packaging Info

Box Dimensions (LxWxH)

58.0 x 58.0 x 46.0"
