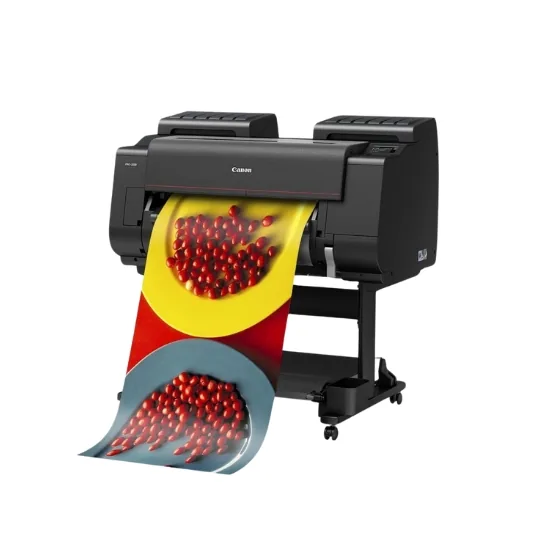

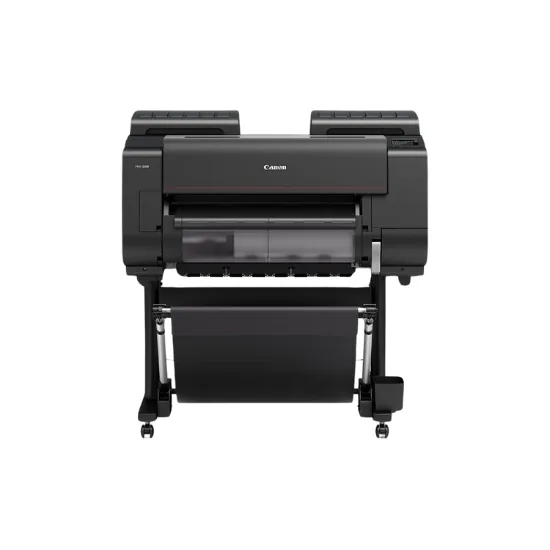

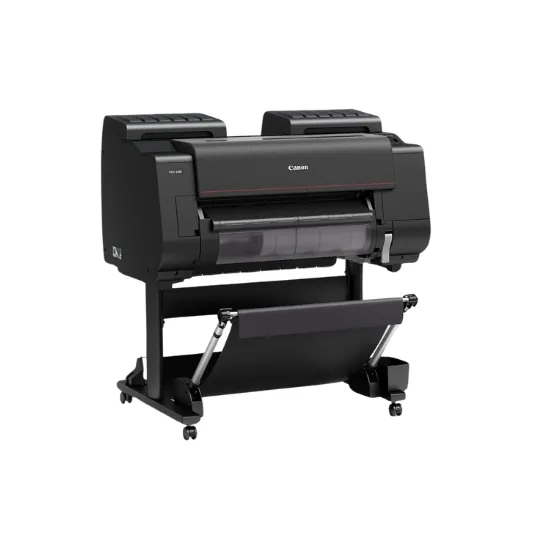

Canon ImagePROGRAF PRO-2100 Printer

Product Description

Technology

- Printer Type: 12 Colour, 24" (610mm) wide
- Print Technology: Canon Bubblejet on Demand (12 colours integrated type, 12 chips per print head x 1 print head)
- Print Resolution: 2,400 x 1,200 dpi
- Number of Nozzles: 18,432 nozzles (1536 nozzles x 12 colours)
- Ink Droplet Size: Minimum 4 pl per colour
- Line Accuracy: ±0.1% or less (user adjustments required)
- Nozzle Pitch: 600 dpi x 2 (Includes Non-firing nozzle detection and compensation system)

Ink and Media

- Ink Type: Pigment inks (Black, Matte Black, Cyan, Magenta, Yellow, Photo Cyan, Photo Magenta, Gray, Photo Gray, Red, Blue, Chroma Optimiser)
- Ink Capacity (Sales Ink): 160ml, 330ml, 700ml
- Bundled Starter Ink: 160ml

OS Compatibility

- Microsoft Windows: 32-bit, Vista, 7, 8, 8.1, 10, Server 2008, 64-bit (Vista, 7, 8, 8.1, 10, Server 2008/R2, 2012/R2, 2019)
- Apple Macintosh: OS X 10.11.6, macOS 10.12 - 10.15

Printer Languages

- SG Raster (Swift Graphic Raster), PDF (Ver. 1.7), JPEG (Ver. JFIF 1.02)

Standard Interfaces

- USB A Port: USB Memory Direct Print for JPEG/PDF files
- USB B Port: Built-in Hi-Speed USB 2.0
- Ethernet: 10/100/1000 base-T
- Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b
- Wireless LAN activation/deactivation details in the user manual

Memory

- Standard Memory: 3 GB
- Hard Drive: 500GB (Encrypted HDD)

Print Time for A1 Page Size

Media Type Print Mode Print Time

Plain Paper Fast 00:58 min

Plain Paper Standard 01:38 min

Coated Paper Standard 01:38 min

Coated Paper High Quality 03:11 min

Glossy Photo Paper Standard 03:11 min

Glossy Photo Paper High Quality 05:02 min

Media Handling

- Media Feed and Output:

- Upper Roll Paper: One Roll, Front-loading, Front Output
- Lower Roll Paper: One Roll, Front-loading, Front Output
- Cut Sheet: Front-loading, Front Output (Manual feed using media locking lever)

- Media Width: 152.4 - 610 mm (Roll Paper), 152.4 - 610 mm (Cut Sheet)
- Media Thickness: 0.07 - 0.8 mm (Roll/Cut)
- Media Core Size: Internal diameter of roll core: 2”/3”

Dimensions and Weight

- Physical Dimensions (W x D x H): 1110 x 984 x 1168 mm (Basket Open), 1110 x 766 x 1168 mm (Basket Closed)
- Weight: 119 kg (including Roll Holder Set and Roll unit, excluding ink and print heads)
- Packaged Dimensions and Weight:

- Printer (Main unit with pallet): 1324 x 902 x 1042 mm, 124 kg
- Roll Unit: 1244 x 562 x 461 mm, 26 kg

Power and Operating Requirements

- Power Supply: AC 100-240V (50-60Hz)
- Power Consumption:

- Operation: 93 W or less
- Sleep Mode: 2.0W or less
- Power Off: 0.3W or less

- Operating Environment: Temperature: 15~30°C, Humidity: 10~80% RH (no dew condensation)

Accoustic Noise

- Operation: approx. 46 dB (A) (Glossy paper, Print priority: Standard)
- Standby: 35 dB (A) or less

Certifications

- ENERGY STAR®, EPEAT Gold
- TUV, CB Certified
- CE (Europe), EAC (Russia)

What's Included

- Printer, 1 print head, 3-inch paper core attachment, Power cable, 1 set of starter ink tanks, Setup guide, User software CD-ROM (Windows), Poster Artist Lite CD-ROM

Software Included

- imagePROGRAF PRO Printer Driver, PosterArtist Lite
- Other software available as download from Canon's website

Options

- Printer Stand: SD-21
- 2/3" Roll Holder: RH2-29
- Roll Unit: RU-23

Consumables

- Ink Tank: PFI-1100 (160ml), PFI-1300 (330ml), PFI-1700 (700ml)
- Print Head: PF-10
- Cutter Blade: CT-07
- Maintenance Cartridge: MC-30
