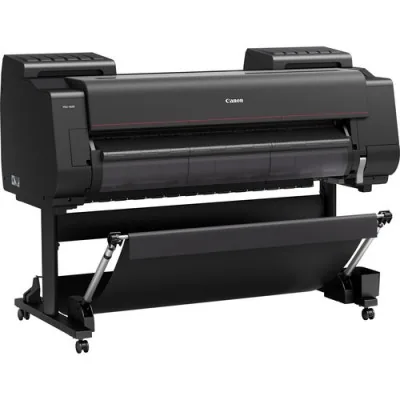

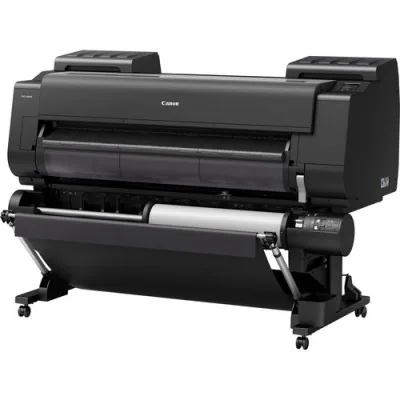

Canon imagePROGRAF PRO-4000S 44" Professional

Product Description

- Max Resolution: 2400 x 1200 dpi
- Max Printable Width: 44"
- FINE Print Head Technology
- L-COA PRO High-Speed Processing Engine
- Color Densitometer for Calibration
- 8 LUCIA PRO Pigment-Based Inks
- Sub Ink Tank System; 320GB Hard Drive
- Dual-Roll Feed; Bi-Directional Rewinding
- 3.5" LCD Touchscreen; USB Direct Print
- USB 2.0, Ethernet, & Wi-Fi Connectivity

Printing Method

Printing TechnologyFINE: Full-Photolithography Inkjet Nozzle Engineering

Maximum Resolution2400 x 1200 dpi

Ink TypePigment-based

Ink Cartridge Configuration8 individual cartridges

Number of Nozzles1,536 nozzles x 12 channels
Total: 18,432

Minimum Ink Droplet Size4 pL

Media Handling

Paper HandlingFront-loading roll feed (one roll, front output)
Front-loading manual feed (front output)
Multifunction roll system (second roll, bi-directional take-up system)

Media Width8-44" / 20.3-111.8 cm

Borderless Printing Width10" / 25.4 cm, 14" / 35.6 cm, 17" / 43.2 cm, 24" / 61 cm, 36" / 91.4 cm, 42" / 106.7 cm, 44" / 111.8 cm, B2 20.3" / 51.5 cm, A1 23.4" / 59.4 cm, A0 33.1" / 84.1 cm, B0 40.6" / 103 cm

Minimum Length8" / 20.3 cm

Maximum LengthRoll Paper: 59' / 18 m
Cut Sheet: 63" / 160 cm

Media Thickness2.8-31.5 mil / 0.07-0.8 mm

MarginsRoll Paper
Top: 0.12" / 3 mm
Bottom: 0.12" / 3 mm
Side: 0.12" / 3 mm
Borderless
Top: 0" / 0 mm
Bottom: 0" / 0 mm
Side: 0" / 0 mm
Cut Sheet
Top: 0.12" / 3 mm
Bottom: 0.79" / 20 mm
Side: 0.12" / 3 mm

Maximum Roll Diameter6.7" / 17 cm

Core Sizes2 or 3" / 5.1 or 7.6 cm

Connectivity

InterfacesUSB 2.0
Ethernet (10/100/1000Base-T/TX)
Wi-Fi (IEEE 802.11b/g/n)

Direct PrintingUSB
Wi-Fi

OS CompatibilityWindows 70, 8.1, 8, 7, Vista (32/64-bit)
Mac OS X 10.7.5-10.11.x

Memory3 GB

Hard Disk Capacity320 GB

Print LanguagesSwift Graphic Raster (SGRaster)

Physical

Control Panel3.5" / 8.9 cm color touchscreen LCD

Power Requirements100-240 VAC

Power ConsumptionMaximum: 107 W
Standby: 1.8 W
Off: 0.5 W

CertificationsENERGY STAR
RoHS Directive

Acoustic Noise49 dB(A)

Operating ConditionsTemperature: 59 to 86°F / 15 to 30°C
Humidity: 10 to 80%

Dimensions46 x 62.7 x 38.7" / 116.8 x 159.3 x 98.3 cm with basket open

Weight267 lb / 121 kg
