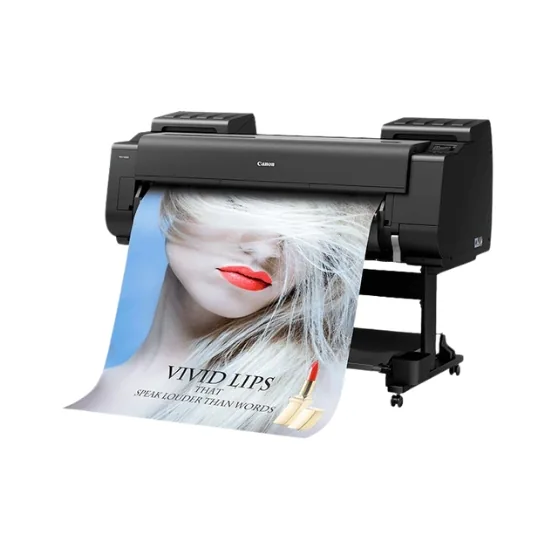

Canon imagePROGRAF Pro-4100S

Product Description

CANON IMAGEPROGRAF PRO-4100S PRINTER

Printer Type 8-Colour 44-inch Printer

Number of Nozzles Total: 18,432
All colours: 1,536 nozzles

Nozzle Pitch 600 dpi x 2
Non-firing nozzle detection and compensation

Print Resolution (Up to) 2400×1200dpi (Max)

OS Compatibility 32bit: Windows® (Vista/7/8, 8.1/10)
64bit: Windows 7, Windows 8.1, Windows 10
Windows Server 2008R2, Windows Server 2012/2012R2, Windows Server 2016, Windows Server 2019
Mac (OS X 10.10.5～OS10.11), (OS 10.12～macOS 10.14)

Standard Interface USB 2.0 High-Speed
10/100/1000 Base-T/TX
Wireless LAN (IEEE 802.11 b/g/n)
USB Thumb Drive

Ink Droplet Size Minimum 4 picoliter

Ink Capacity 160, 330, or 700ml per colour*

Ink Types Pigment based LUCIA PRO Ink

Colour Set Photo Black, Matte Black, Cyan, Magenta, Yellow, Photo Cyan, Photo Magenta, Gray

Hard Drive 500GB

Media Width Cut Sheet: 8” – 44”
Roll Feed: 8” – 44”

Media Thickness Roll: 0.07 - 0.8 mm (2.8 - 31.5mil)

Maximum Roll Print Length Roll Feed: 59' (18 meters)**

Maximum Media Roll Diameter 6.7” (170mm)

Borderless Printing Width (Roll Media Only) All Sizes

Paper-Feed Method Roll Feed: One Roll, Front-loading, Front Output
Manual Feed: Front-loading, Front Output

Languages Swift Graphic Raster (SGRaster)

Noise Level (Approx.) Operation: 49 dB (A) or less
Acoustic Power: 6.6 Bels or less

Physical Dimensions 46.0" (H) x 62.7" (W) x 38.7" (D) (with basket open)

Weight Approx. 267 lbs (roll holder included, no inks, no print heads)

Power Source AC 100-240V（50-60Hz）

Power Consumption Maximum: 107 W or less
Standby: 1.8 W or less
Power Off: 0.5 W or less

Operating Environment Temperature: 59 - 86°F
Relative Humidity: 10-80% (No Condensation)

User-replaceable items Print Head (PF-10)
Maintenance Cartridge (MC-30)
Ink Tanks (PFI-1100/PFI-1300/PFI-1700)

Software Included Professional Print & Layout, imagePROGRAF Printer Driver, Quick Utility Toolbox, Accounting Manager, Device Management Console, Media Configuration Tool, PosterArtist Lite (PC only), Printer Driver Extra Kit (Free Layout and Advanced Preview), Print Plug-in for Microsoft Word/Excel/PowerPoint (PC only), Direct Print & Share, Gallery Wrap Feature
