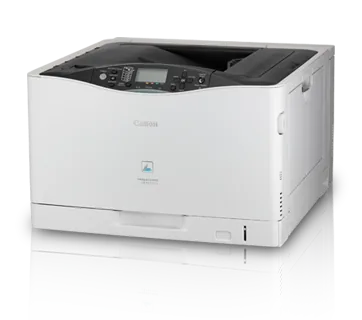

CANON LBP843Cx CLASS Printer Laser

Product Description

Printer Specifications
Printer Specifications

Printing

- Printing Method: Color Laser Printing
- Print Speed:

- A4: 31 ppm (mono/color)
- A3: 15 ppm (mono/color)

- Print Resolution:

- 600 x 600 dpi
- 1,200 x 1,200 dpi
- 9,600 (equivalent) x 600 dpi

- First Print Out Time: Approx. 7.9 / 9.9 seconds (mono/color)
- Print Languages: UFR II, PDF, XPS, PCL6 (93 scalable fonts)
- Warm-up Time (from power on): 29 seconds or less
- Recovery Time (from sleep mode): Approx. 9 seconds
- Automatic Duplex Printing: Standard
- Paper Sizes for Duplex Printing: A3, B4, A4, B5, A5, Legal, Letter, Executive, Foolscap

Paper Handling

- Paper Input:

- Standard Cassette: 250 sheets
- Multipurpose Tray: 100 sheets

- Maximum Paper Capacity: 2,000 sheets
- Paper Output: 250 sheets (face-down)
- Supported Paper Sizes:

- Standard Cassette: A3, B4, A4, B5, A5, Legal, Letter, Executive, Foolscap
- Custom Sizes: Width 148.0–297.0 mm, Length 182.0–431.8 mm
- Multipurpose Tray: A3, B4, A4, B5, A5, Legal, Letter, Executive, Foolscap, Index Card (3 x 5"), Envelopes (ISO-C5, No.10, Monarch, DL)
- Custom Sizes: Width 76.2–304.8 mm, Length 120.0–457.2 mm

- Paper Weight:

- Standard Cassette: 60–128 g/m²
- Multipurpose Tray: 60–220 g/m²

- Supported Paper Types: Plain, Heavy, Label, Envelope

Connectivity & Software

- Standard Interfaces: USB 2.0 High Speed, 10Base–T / 100Base–TX / 1000Base–T
- Network Interface Protocols: TCP/IP (Ethernet II), SMB
- Printing Applications: LPD, RAW, IPP/IPPS, FTP, WSD
- Mobile Printing: Canon PRINT Business, Canon Print Service
- Compatible Operating Systems:

- Windows® 10/8.1/8/7/Vista (32/64-bit)
- Windows® Server 2012, 2008 R2, 2008, 2003 (32/64-bit)
- Mac OS 10.6.8 and later, Linux

General Specifications

- Memory: 1 GB
- Control Panel: 5-line LCD display
- Dimensions (W x D x H): 545 x 591 x 361.2 mm
- Weight: 34 kg
- Power Consumption:

- Maximum: 1,420W or less
- During Operation: Approx. 540W
- During Standby: Approx. 22.5W
- During Sleep: Approx. 3W (USB), 1.5W (LAN)

- Noise Levels:

- During Operation: Sound Power ≤ 6.7B, Sound Pressure 52dB
- During Standby: Inaudible

- Power Requirements: 220–240V, 50/60Hz
- Operating Environment: Temperature: 10–30°C, Humidity: 20–80% RH (non-condensing)

Toner Cartridges

- Standard Toner:

- Cartridge 335E Black: 7,000 pages
- Cartridge 335E Cyan/Magenta/Yellow: 7,400 pages

- High Capacity Toner:

- Cartridge 335 Black: 13,000 pages
- Cartridge 335 Cyan/Magenta/Yellow: 16,500 pages

- Waste Toner: WT-722 Waste Toner Cartridge (150,000 impressions)
- Monthly Duty Cycle: 120,000 pages

Optional Accessories

- Paper Tray E1:

- Capacity: 550 sheets
- Supported Sizes: A3, B4, A4, B5, A5, Legal, Letter, Executive, Foolscap
- Custom Sizes: Width 148.0–297.0 mm, Length 182.0–431.8 mm
- Paper Weight: 60–128 g/m²

- SD Card–C1: Yes
- Barcode Printing Kit–F1: Yes

Notes:

- Legal refers to 215.9 x 355.6 mm (8.5 x 14 inches) paper size.
- Measured according to ISO 7779; declared noise emissions conform to ISO 9296.
- "Inaudible" indicates that sound pressure levels at the observer's position are below ISO 7779 criteria for background noise.
- Stated yield according to ISO/IEC 19798.
- The monthly duty cycle value is for comparing product durability relative to other Canon laser devices and does not represent actual maximum monthly output.
- Optional paper tray does not support duplex printing for A5 size.
