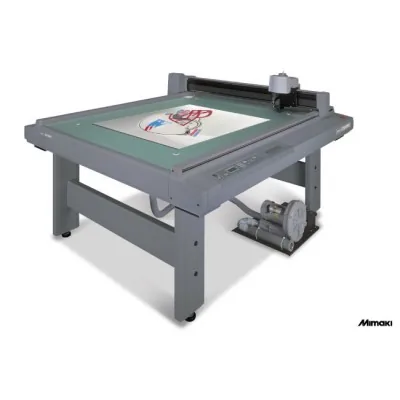

Mimaki CF2-1218

Product Description

Enable your multi-type-small-lot production with the CF2.

The CF2 Series flat bed cutting plotter capable of cutting various kinds of media with high accuracy without dies. Out of a total of 30 kinds of line-up, you can choose the one best suited for your needs. By cutting the printed media, you may produce high value-added products on demand required. Begin multi-type small-lot production with unprecedented high quality.

CF2-0912**CF2-1215**CF2-1218**

Effective
plotting
areaX
(Sensor model)1,170mm(46.1")1,470mm(57.9")1,770mm(69.7")

X
(No sensor model)1,200mm(47.2")1,500mm(59.1")1,800mm(70.9")

Y900mm(35.4")1,200mm(47.2")

MotorizationX,Y,Z,θ 4 axes DC software servo

Maximum plotting speed50cm(19.7") / s

Maximum acceleration0.5G

Mechanical resolutionX:0.00234mm(0.00009") Y:0.003125mm(0.0001") θ:0.05625

Command resolution0.025mm(0.001") / 0.01mm(0.0004")
(changeable from operation panel)

Static
accuracy *1Repetition accuracy±0.1mm(0.004")

Distance accuracy±0.1mm(0.004") or ±0.1% whichever is greater

Origin repetition accuracy±0.1mm(0.004")

Maximum thickness of set workT / TD:25mm(1") RT / RC:20mm(0.8")

Work fixationAir suction by a blower

Receiver buffer size1MB

CommandMGL-IIc3(Support MGL-IIc) *2

InterfaceRS-232C

DimensionWidth1,760mm(69.3")
or less2060mm(81.1")
or less2360mm(92.9")
or less

Depth1,600mm(63.0")
or less1900mm(74.8") or less

Height1,100mm(43.3") or less

Weight140kg(308lbs)165kg(364lbs)180kg(397lbs)

Operation environmentTemperaturet : 5-40ºC
Humidityt : 35-75%(Rh)No condensation

Power requirementMain Unitt : 50/60Hz AC100/120/220/240V(tap changing)
Blowert : Stated separately

Power consumptionMain Unit : 300VA Blowert : Stated separately

Materials that can be processed★：Possible to cut with standard accessories

●：Possible to cut with the use of optional items

TTFRTTDRC

Corrugated fiberboard(E to B corrugation)* ★★

Corrugated fiberboard(AB corrugation)* ★

Coated board for packaging* ★★

Vinyl chloride for clear package* ★★

Plastic corrugated fiberboard ★★

Vinyl chloride sheet for signboard★★★★★

Soft vinyl chloride(0.5 to 10mm)●●

Reflecting sheet★★★★★

Sand-blast rubber★★★★★

Industrial sheet rubber(3mm or less)★★★★★

Industrial sheet rubber(0.5 to 10 mm)●●

Pattern Happort★★★★★

Teflon(1.0 to 5.0mm) ★ ★★

Resin belt. (5.0mm or less)★★

Various foam(20mm or less) ★

Note) As the property of the media may vary depending on the material manufacturers, the above data is just a guide. Make sure to perform your own testing.
Note) *shows material to which drawing of the ruled line is possible.

Model

CF2-0912TEffective cutting area: 900 x 1,200 mm (35.4 x 47.2")

CF2-0912TFEffective cutting area: 900 x 1,200 mm (35.4 x 47.2")

CF2-0912RTEffective cutting area: 900 x 1,200 mm (35.4 x 47.2")

CF2-0912TDEffective cutting area: 900 x 1,200 mm (35.4 x 47.2")

CF2-0912RCEffective cutting area: 900 x 1,200 mm (35.4 x 47.2")

CF2-1215TEffective cutting area: 1,200 x 1,500 mm (47.2 x 59.1")

CF2-1215TFEffective cutting area: 1,200 x 1,500 mm (47.2 x 59.1")

CF2-1215RTEffective cutting area: 1,200 x 1,500 mm (47.2 x 59.1")

CF2-1215TDEffective cutting area: 1,200 x 1,500 mm (47.2 x 59.1")

CF2-1215RCEffective cutting area: 1,200 x 1,500 mm (47.2 x 59.1")

CF2-1218TEffective cutting area: 1,200 x 1,800 mm (47.2 x 70.9")

CF2-1218TFEffective cutting area: 1,200 x 1,800 mm (47.2 x 70.9")

CF2-1218RTEffective cutting area: 1,200 x 1,800 mm (47.2 x 70.9")

CF2-1218TDEffective cutting area: 1,200 x 1,800 mm (47.2 x 70.9")

CF2-1218RCEffective cutting area: 1,200 x 1,800 mm (47.2 x 70.9")
