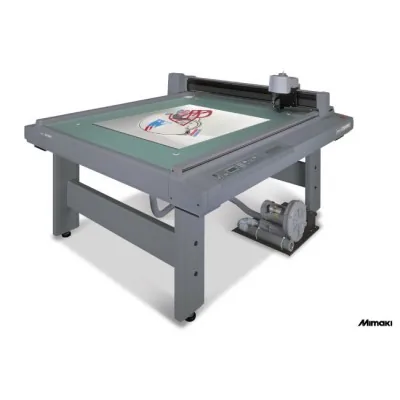

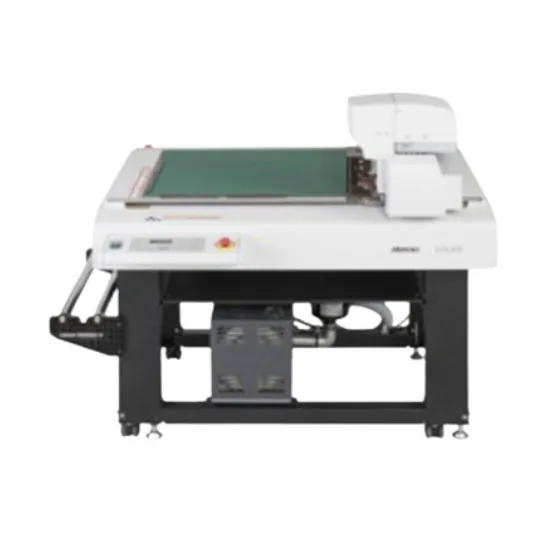

MIMAKI CFL-605RT FLATBED CUT WITH RECIP

Product Description

Specifications :

ItemCFL-605RT

Driving methodX/Y/Z/Θ 4 axes: DC servo motor

Material holding methodAir suctioning by a vacuum unit

Maximum media630mm x 530mm

Cutting area610mm x 510mm

Maximum cutting speedXY: 423 mm/s (45° angle direction) Z: 30mm/s

Maximum cutting speedXY: 423 mm/s (45° angle direction) Z: 30mm/s

Maximum downforce pressureEccentric cutter: 1,000g / Tangential cutter and creasing roller 1,500g

Maximum media thicknessReciprocating cutter: 10mm / Tangential cutter: 2mm

Maximum media weight20kg (this is not one-point-load strength)

Static accuracyRepeatability0.2 mm or lower (Material shrinkage is ignored)

Distance accuracyMoving distance × ±0.2% or lower or ±0.1 mm or lower Larger value is applied

Original repetition accuracy0.1 mm or lower

A UnitAttachable tools: Eccentric cutter, pen

B UnitAttachable tools: Reciprocating / Tangential cutter, Creasing roller

CommandMGL-ll c3

InterfaceUSB2.0, RS-232C, Ethernet

Power specificationSingle phase AC100-120V / 200-240V, 50/60Hz

CommandMGL-IIc3

InterfaceUSB 2.0 (High Speed), RS-232C, Ethernet

Power specificationSingle phase AC 100–120 V/200–240 V, 50/60 Hz

Noise level70db or lower (The maximum level is generated while the reciprocating cutter or a vacuum blower is used)

Power consumption500 W

Dimensions (W × D × H)1,320mm x 1,045mm x 1,100mm

Weight109kg or lower (Blower: 20kg, included)

Warranty period1 year

CertificationsVCCI class A, CE marking (Machinery directive, RoHS directive),
CB, UL 60950-1, REACH, FCC class A
