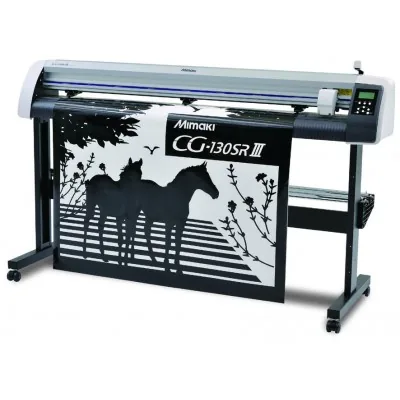

Mimaki CG-130SRIII

Product Description

Extreme curve cutting speed

Affordably priced but technologically advanced.
Achieve the highest return on your investment.

Main Features

- A best-in-class cutting pressure of 500g for a wider range of materials
- Up to 2 times the curve cutting speed increases productivity
- Event Notification function for remote monitoring
- Plot start/end, error/warning message
- Continuous Crop Mark Detection for precise stickers and seals.
New Segment Compensation, which detects intermediate crop marks, enables accurate contour cutting of long-length prints
- Upgrade of firmware can be done quickly and easily by user.
- Ethernet connection for LAN use as well as USB2.0 and RS-232C

CG-60SRIII

Effective cutting area 606mm (23.8")

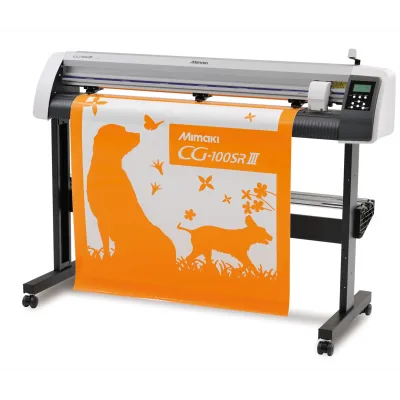

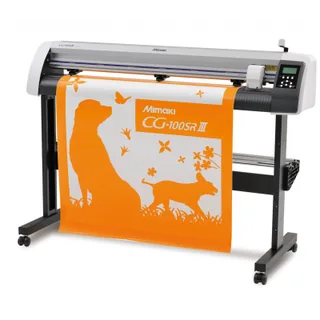

CG-100SRIII

Effective cutting area 1,070mm (42.1")

CG-130SRIII

Effective cutting area 1,370mm (53.9")

CG-60SRIIICG-100SRIIICG-130SRIII

Acceptable sheet width90～740 mm90～1,250 mm90～1,550 mm

Effective cutting area606 mm1,070mm1,370mm

Maximum speedCutting: 70 cm/s, Moving: 100 cm/s

Adjustable speed range1 - 10 cm/s (1 cm/s step adjustment), 1 - 70 cm/s（ 5 cm/s step adjustment）

Mechanical resolutionX direction: 2.5 μm、Y direction: 5 μm

Command resolution25 μm or 10μm（ MGL-IIc） / 100 μm, 50 μm（ MGL-Ic1）

Repeatability *1± 0.2 mm / 2 M

Effective Repeatability *2586 mm × 2 M1,050 mm × 2M1,350 mm × 2M

Maximum pressure500g

Range
of down pressureCutter10 - 20 g（2 g step）, 20 - 100 g（5 g step）, 100 - 500g（10g step）

Pen10 - 20 g（2 g step）, 20 - 100 g（5 g step）, 100 - 150g（10 g step）

Acceptable sheet *2Vinyl sheet, Fluorescent type vinyl sheet, Reflective sheet, Rubber sheet

Acceptable tool *3Cutter, Ball-point pen

Type of commandMGL-IIC / MGL-Ic1

InterfaceUSB2.0、RS-232C、Ethernet

Receiver buffer size27 MB Standard (When sorting, 17 MB)

Operational environment5 - 35 ℃, 35 - 75 ％（Rh）, Non-condensation

Power requirementAC 100 V - 240 V, 145 VA or less

Dimensions（W×D×H）1,030 × 430 × 335 mm
（1,030 × 430 × 1,185 mm）*41,530 × 580 × 1,150 mm1,830 × 580 × 1,150 mm

Weight24kg41kg46kg

StandOptional equipmentStandard equipmentStandard equipment

*1: Except for media expansion and contraction due to temperature.
*2: Operated with Mimaki specified media, cutter and cutting conditions.
Thickness of rubber and its cutting speed are limited. Guaranteed accuracy environment: Temperature 12-25℃, Humidity 45-65%
*3: Our dedicated cutter blade and specified commercial ball-point pens are available. (Drawing quality of ball-point pen is not warranted)
*4: When equipped with the optional stand (OPT-0231)

Model

CG-60SRIIIEffective cut width: 606 mm (23.8")

CG-100SRIIIEffective cut width: 1,070 mm (42.1")

CG-130SRIIIEffective cut width: 1,370 mm (53.9")
