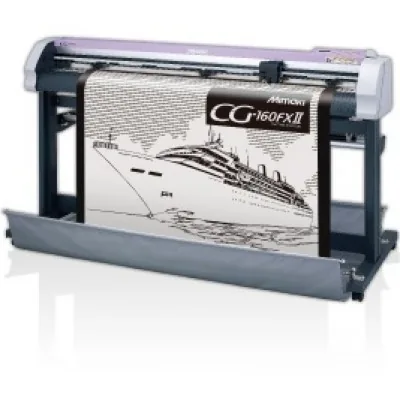

Mimaki CG-160FXII

Product Description

CG-75FXIICG-130FXIICG-160FXII

Acceptable sheet width90mm~1,040mm (3.54"~40.9")90mm~1,580mm (3.54"~62.0")90mm~1,880mm (3.54”~74”)

Acceptable roll sheetOuter less than φ200mm , Roll weight less than 18kgOuter less than φ200mm Roll weight less than 22kg

Effective cutting area*1760mm x 51m(29.9" x 167')1,300mm x 51m(51.2" x 167')1,600mm×51m(62.9”×167’)

Maximum auto cutting width*2870mm (34.2”)1,425mm (56.1”)1,720mm (67.7”)

Maximum cutting speed100cm/s (39.3"/s)

Maximum moving speed140cm/s (55"/s)

Adjustable speed range*31-10cm/s : 1cm step adjustment
(0.39"-3.94"/s : 0.39" step adjustment)
10-50cm/s : 5cm step adjustment
(3.94"-19.68"/s : 2" step adjustment)
50-100cm/s : 10cm step adjustment
(19.68"-39.37" : 3.94" step adjustment)

Mechanical resolution5µm(0.0002")

Command resolution25µm or 10µm(0.001" or 0.0004")-MGL-IIc

Repeatability±0.2mm (Excluding shrinkage / expansion caused by the film temperature)

Tekanan pen400g

Range of down pressureCutter10~20g(2g step), 20~100g(5g step), 100~400g(10g step)

Pouncing10~20g(2g step), 20~100g(5g step), 100~400g(10g step)

Pen10~20g(2g step), 20~100g(5g step), 100~150g(10g step)

Acceptable sheet*4Vinyl up to 0.25mm(0.01")thickness,
Fluorescent type vinyl Reflective sheet

Acceptable sheet for pouncing*5Paper thickness: 0.06~0.13mm (0.0024"~0.005")

Applicable tools*6Cutter, Water based ball-point pen,
Oil based ball-point pen, Pouncing tool

Type of commandMGL-IIc

InterfaceRS-232C,USB

Receiver buffer size30MB Standard (20MB when in sorting)

OperationalTemperature5~35°C (41~95°F)

Humidity35~75%(Rh) Non-condensation

Power requirementAC100V~240V

Power consumption145VA or less

Dimensions (WxDxH)1,285mm(50.5")x
700mm(27.5")x
1,217mm(47.9")1,825mm(71.8")x
700mm(27.5")x
1,217mm(47.9")2,125mm(83.6")x
700mm(27.5")x
1,217mm(47.9")

Weight (with stands)50kg(110 lbs.)60kg(132 lbs.)69kg(152 lbs.)

*1: Maximum sheet feeding length differs depending on the software.
*2:Sheet width to cut off from the roll.
*3:Restricted sheet width.
*4:Provided that the blade specific to fluorescent type vinyl (SPB-0007)and the blade specific to reflective sheet (SPB-0006)are used.
*5:Pouncing tool intended specifically for pouncing shall be used.
*6:The goods on the market are φ8~φ9 Pen. No guaranty with accuracy, and image quality.

- Specifications are subject to change without notice.
- All trademarks or registered trademarks are the property of the respective owners.

Model

CG-75FXIIEffective cut width: 760 mm (29.9")

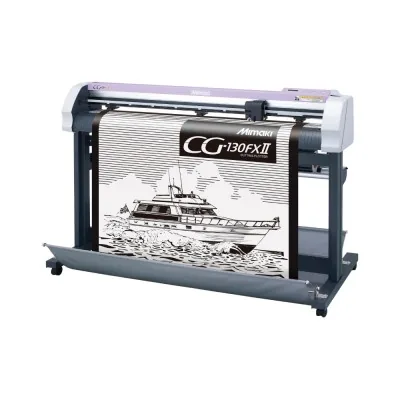

CG-130FXIIEffective cut width: 1,300 mm (51.2")

CG-160FXIIEffective cut width: 1,600 mm (63.0")
