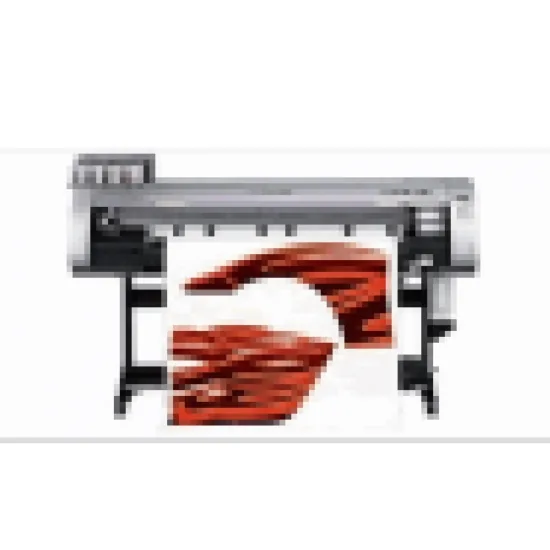

Mimaki CJV30-130 Printer/Cutter (54-inch)

Product Description

Mimaki CJV30-130 Printer/Cutter (54-inch)

The CJV30-130 is a large format print and cut solution that combines fast printing and cutting with a high quality output.
Its unmatched performance and production make the CJV30-130 the optimum print & cut solution for signmakers and other print providers looking for an integrated printer/cutter to produce large sized signs, posters, vehicle wraps, POP displays, backlit, window decoration and floor signage.

Summary:

- High quality printing up to 1440 dpi
- Maximum printing speed 17.5 m2/h
- Automatic switching from printing to cutting
- Continuous crop mark detection for accurate contour cutting
- Simultaneous white and full colour printing
- Sparkling Metallic ink
- Continuous printing with the Uninterrupted Ink Supply System
- RIP, cutting, and creation software included

Mimaki CJV30-130 Printer/Cutter (54-inch)

Technical Specs & Details

ModelCJV30-130

Maximum printing width1,361mmmm (53.5")

Print resolution540dpi, 720dpi, 1440dpi

Print mode540 x 720dpi, 540 x 900dpi, 540 x 1,080dpi

720 x 540dpi, 720 x 720dpi, 720 x 1,080dpi, 720 x 1,440dpi

1,440 x 1,440dpi

InkTypeSolvent ink: ES3

Capacity4-colour mode: 440cc cartridge x 2/colour = 880cc/ colour

6-colour mode: 440cc cartridge x 1/colour = 440cc/ colour

MediaWidth1,371mm (53.9")

ThicknessLess than 1.0mm

Roll weightLess than 25kg (55lbs.)

Roll diameterInside: 2 inch, 3inch / Outside: Less than Ø 180mm (7.1")

Maximun cutting speed30cm 11.8"/s

Cutting force10-350g

Applicable toolsCutter, Water based ball-point pen, oil based ball-point pen

Media cuttingCutting in the Y direction by the cutter on the head

Media heaterPre / print / post heater

Media take-up deviceRoll take-up device (Standard) inside, outside selectable

CommandMRL-III, MGL-IIc2

InterfaceUSB 2.0

Applicable standardVCCI class A, FCC class A, UL60950, CE Marketing (EMC directive, low voltage directive) CB, report

PowerAC100~240V, less then 1,380VA

Operational Environment20ºC ~ 35ºC (64~95ºF), Humidity:35~65%RH (No condensation)

DimentionsW=2,289mm (90.1") x
D=739mm (29.1") x
H=1,424mm (56.1")

Weight145kg (319lbs.)

- Some of the samples in this website are artificial renderings.
- Specifications, design and dimensions stated in this website may be subject to change without prior notice(for technical improvements, etc).
- The corporate names and merchandise names written on this website are the trademark or registered trademark of the respective corporations.
- Inkjet printers print using extremely fine dots, so colors may vary slightly after replacement of the print heads. Also note that if using multiple printer units, colors could vary slightly from one unit to other unit due to slight individual differences.
