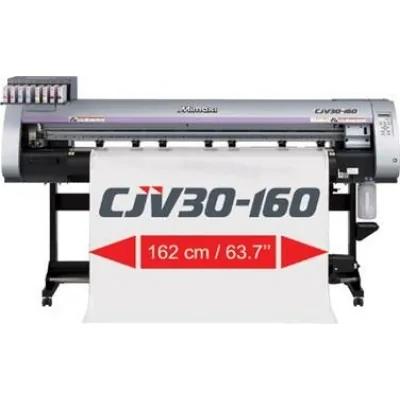

MIMAKI CJV30-160 PRINTER/CUTTER (63-INCH)

Product Description

Mimaki CJV30 series printer cutters increase your productivity by integrating printing and cutting into one device. Unique features allow continuous unattended printing and cutting.

- Continuous Crop Mark Detection increases cutting accuracy.
- Automatic Media Clamp Function allows continuous printing and cutting.
- High density, fast drying white ink widens usage of applications
- UISS (Uninterrupted Ink Supply System) improves operating performance by allowing continuous unattended printing.
- Up to 1440 dpi (variable dot technology)
- Printing speeds:

- 186 sqft/hr (17.3 m2/hr) at 540 x 720 dpi, 4 pass
- 126 sqft/hr (11.7 m2/hr) at 540 x 1080 dpi, 6 pass
- 78.5 sqft/hr (7.3 m2/hr) at 720 x 1440 dpi, 8 pass

- Cutting speeds:

- up to 11.8 in/sec (30 cm/sec)

- Simple Studio and Fine Cut software included for easy sticker making. For professional users, Raster Link Pro4 SG RIP is included as standard.

Specifications

ModelCJV30-60CJV30-100CJV30- 130CJV30-160

Maximum print /
cut width610 mm (24.0")1,020 mm (40.1")1,361 mm (53.5")1,610 mm (63.3")

Print resolution540 dpi, 720 dpi, 1440 dpi

Print mode
(Scan x Feed)540 x 720dpi, 540 x 900dpi, 540 x 1,080dpi

720 x 540dpi, 720 x 720dpi, 720 x 1,080dpi, 720 x 1,440dpi

1,440 x 1,440dpi

InkKindExclusive solvent ink: SS21 ink, ES3 ink

Capacity4-color mode: 440 cc cartridge x 2/color, 880 cc/color

6-color mode: 440 cc cartridge x 1/color, 440 cc/color

MediaWidth620 mm (24.4")1,030 mm (40.5")1,371 mm (53.9")1,620 mm (63.7")

ThicknessLess than 1.0 mm

Roll weightLess than 25 kg (55 lbs.)

Roll diameterInside: 2 inch, 3 inch / Outside: Less than φ180 mm (7.1")

Maximum cutting speed30 cm: 11.8"/s (42 cm: 1 6.5"/s at the angle of 45)

Cutting force10-350 g

Applicable toolsCutter, Water based ball-point pen,
Oil based ball-point pen

Media cuttingCutting in Y direction by cutter on the head

Media heaterPre/print/post heater

Media take-up deviceRoll take-up device (Standard), inside/outside selectable

CommandMRL-III , MGL-IIc2

InterfaceUSB 2.0

Applicable standardVCCI class A, FCC class A, UL60950,
CE Marking (EMC directive, low voltage directive),
CB report

PowerAC100V~240V, Less than 1,380VA

Operation environments20°C~35°C, 35~65%RH (No condensation)

Dimensions
(W x D x H)1,524 x 739 x
1,424mm
(60" x 29.1" x
56.0")1,934 x 739 x
1,424mm
(76.1" x 29.1" x
56.0")2,289 x 739 x
1,424mm
(90.1" x 29.1" x
56.0")2,538 x 739 x
1,424mm
(99.9" x 29.1" x
56.0")

Weight110kg
(242 lbs.)130kg
(286 lbs.)145kg
(319 lbs.)

160kg
(352 lbs.)
