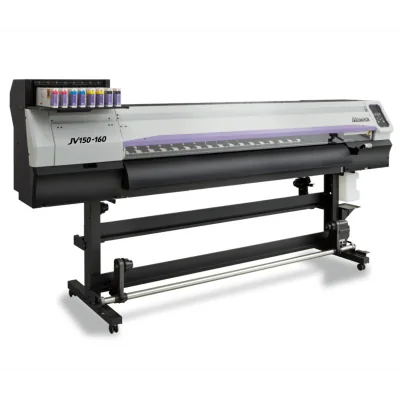

Mimaki Jv150 -160

Product Description

JV150-130JV150-160

PrintheadOn-demand piezo head

Print resolution360 dpi, 540 dpi, 720 dpi, 1,080 dpi, and 1,440 dpi

Maximum print width1,361mm (53.6")1,610mm (63.4")

Maximum media width1,371mm (54.0")1,620mm (63.8")

InkType/ColorEco-solvent ink
・SS21（C,M,Y,K,Lc,Lm,Lk, and Or）
・BS3（C,M,Y, and K） only available in emerging countries
・BS4（C,M,Y, and K） only available in emerging countries
・ES3（C,M,Y,K,Lc, and Lm）
Sublimation ink
・Sb53（Bl,M,Y,K/Dk,Lbl, and Lm）
・Sb54（Bl,M,Y,K,Lbl, and Lm）

Package size *1SS21: 440ml Ink cartridge / 2L Ink pack
BS3, BS4: 600ml Ink pack / 2L Ink pack
ES3: 440ml Ink cartridge
Sb53, Sb54: 440ml Ink cartridge / 2L Ink pack

Media thickness1.0 mm or less

Rolled media weight40 kg (88 lb) or less

CertificationsVCCI class A, FCC class A, ETL UL 60950-1
CE Marking (EMC, Low voltage, Machinery directive, and RoHS),
CB, REACH, Energy Star, RCM
(CCC is in the process of being acquired.)

InterfaceUSB 2.0, LAN

Power supplySingle-phase (AC 100–120V / AC 220–240V±10%) 50/60Hz±1Hz

Power consumption1,440W×1 or less (at AC 100V system)
1,920W×1 or less (at AC 200V system)

Operational environmentTemperature: 20–30 °C (68–86 °F)
Humidity: 35–65% Rh (Non condensing)

Dimensions (W×D×H)2,525mm×700mm×1,392mm
(99"×28"×55")2,775mm×700mm×1,392mm
(109"×28"×55")

Weight160 kg (353 lb)185 kg (408 lb)

*1 Optional Mimaki bulk ink system 3 (MBIS3) is required for using 2L Ink pack.

Ink set

SS21
［C,M,Y,K,Lc,Lm,Lk,Or］C M Y K

C M Y K Lc Lm Lk Or

BS3
［C,M,Y,K］C M Y K

BS4
［C,M,Y,K］C M Y K

ES3
［C,M,Y,K,Lc,Lm］C M Y K

C M Y K Lc Lm

Sb53
［Bl,M,Y,K/Dk,Lbl,Lm］Bl M Y K/Dk

Bl M Y K/Dk Lbl Lm

Sb54
［Bl,M,Y,K,Lbl,Lm］Bl M Y K

Bl M Y K Lbl Lm

- Some of the screens and printing samples in this website are artificial renderings.
- Specifications are subject to change without notice.
- All trademarks or registered trademarks are the property of their respective owners.
- Inkjet printers print using extremely fine dots, thus colors may vary slightly following replacement of the printing heads. Also note that if using multiple printer units, colors may vary slightly among the units due to slight individual differences among the units.
