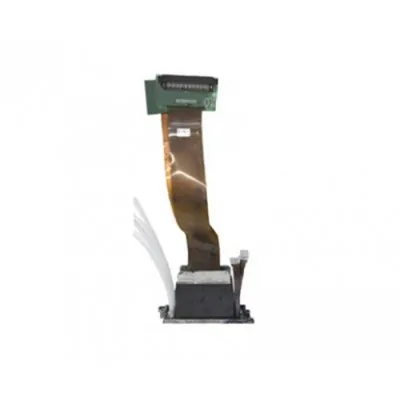

Mimaki SWJ-320 Printhead

Product Description

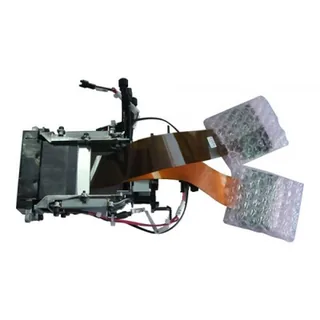

Mimaki SWJ-320 printhead GEN5 Assy Packaging - M012639 - EXCLUSIVE

To be used with: Mimaki SWJ-320 Printers.

Remarks: Original

Part No.: M012639

Specifications:

Model

PRH-MIM-005

Dimensions 89 x 25 x 69 mm (excluding cables)

Head materials SST, Nickel alloy and Epoxy Adhesive

Nozzle plate surface Coated SST

Number of nozzles 4 x 320 nozzles

Nozzle spacing 0.1693 mm

Nozzle density up to 600 npi

Piezo yype D33 Stacked PZT

Temperature control Integrated Heater and Thermistor

Operator temperature range Up to 80° C

Native drop volume 7 pl

Drop volume range 7 - 35 pl

Drop velocity 7 m/s

Jetting frequency Up to 60 kHZ

Life 100 billion actuations per nozzle
