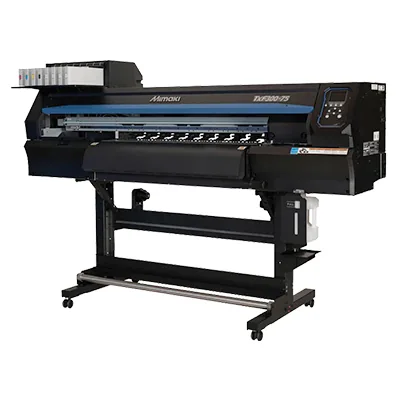

Mimaki TXF300-75/1600 DTF printer

Product Description

Mimaki DTF (Direct To Film) Printer

The new Mimaki TxF300-1600 takes direct-to-film to another level with the ability to print up to 63” rolls. Embodying the same core functionalities as the industry leading TxF300-75 model, the new TxF300-1600 increases both versatility and throughput without additional parts complexity and maintenance required with additional printheads. The TxF300-1600 further sets Mimaki apart as a textile and apparel printing solutions leader. Integral features for seamless operations include:

- Quickly produce indoor and outdoor prints on a large selection of media with ‘one printer to do it all’ versatility in a small footprint.
- Enjoy outstanding quality, productivity, and the industry’s best outdoor durability, all at an attractive price point.
- A complete print & cut device with integrated software and a range of ink choices to print a wide range of applications.

- Easy to use with included RIP software that offers extreme accuracy when creating instant decals and large wall graphics.
- Outstanding quality and productivity at an attractive price point
- Mimaki Core Technologies deliver exceptional results economically and with maximum productivity.
- Select from three model widths to suit your production needs.
-

-

Specifications

Printhead
Dual On-demand piezo heads

Print resolution
720dpi, 1,440dpi

Maximum Print Width
TxF300-75: 800mm (31.5″ in)

TxF300-1600: 1610 mm (63.4 in)

Maximum media width
TxF300-75: 810mm (31.9 in)

TxF300-1600: 1620 mm (63.8 in)

Maximum Media Thickness
up to 0.04″ (1 mm)

Maximum Media Weight⁨⁣
Up to 99.2 pounds (45 kg)

Ink Type
Heat transfer pigment ink PHT50 (C,M,Y,K,W)

Interface
Ethernet 1000 BASE-T / USB2.0

Power Supply⁧⁢
Main unit: Single-phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz x 1

Power Consumption
Txf300-75: 100V system: 1.44kW, 200V system: 1.92kW

TxF300-1600: AC100-120V, 1300W or less, AC200-240V, 1750W or less x1

Operational Environment
Temperature: 68-86 F (20° – 30°C)
Humidity: 35 – 65 % RH (Non condensing)

Dimensions (W × D × H)
TxF300-75: 1,965mm×700mm×1,392mm (77.4 x 27.6 x 54.8 in)
TxF300-1600: 3,783mm x 2,700mm x 1,392mm (148.93 in W x 106.3 in D x 54.80 in H)

Weight
126kg (277.8 lb)

Certifications
VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS),CB, REACH,

Energy Star, RCM, KC

Inks

Thermal transfer pigment ink (PHT50)CyanMagentaYellowBlackWhite

600mlPHT50-C-60PHT50-M-60PHT50-Y-60PHT50-K-60

500mlPHT50-W-50
