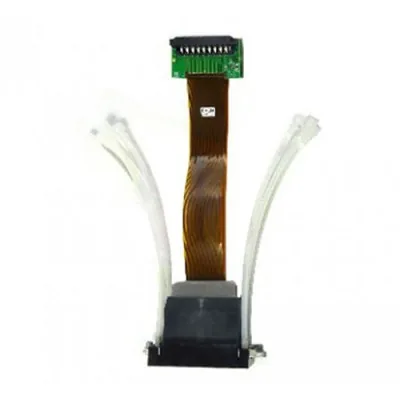

Mimaki TS500-1800 Gen5 Printhead

Product Description

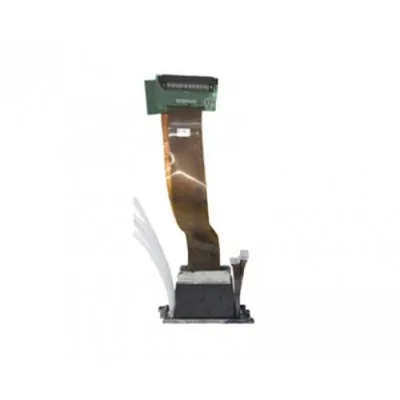

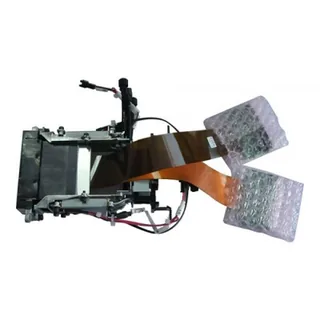

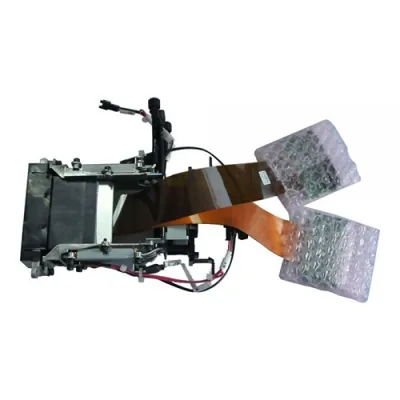

Mimaki TS500-1800 Gen5 printhead Assy Type-D - M014140

This printhead is suitable for Mimaki TS500-1800 & TX500-1800 series printers.

Printer Compatibility: Mimaki TS500-1800 / TX500-1800B / TX500-1800DS

Part No.: M014140

Remarks: Original

Specifications:

Model

PRH-MIM-006

Head materials SST, Nickel alloy, Epoxy Adhesive

Number of nozzles Four 320 nozzles

Nozzle spacing 0.1693 mm

Nozzle density up to 600 npi

Nozzle plate surface Coated SST

Piezo type D33 Stacked PZT

Native drop volume 7 pl

Drop volume range 7 - 35 pl

Drop velocity 7 m/s

Jetting frequency Up to 60 kHZ

Temperature control Integrated Heater and Thermistor

Operator temperature range Up to 80° C

Life 100 billion actuations per nozzle

Dimensions 89 x 25 x 69 mm (not include cables)
