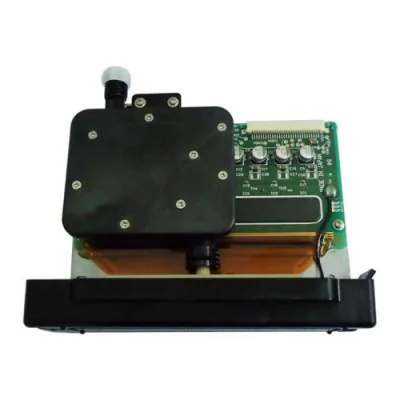

Seiko SPT-510 / 50pl Printhead

Product Description

To be used with: Crystaljet F1804 SPT510-50PL, Crystaljet F3304II SPT510-50PL, Crystaljet F4304 SPT510-50PL, Crystaljet F4308 SPT510-50PL, Crystaljet S4306 SPT510-50PL, Crystaljet S6306II SPT510-50PL, Crystaljet F6308II SPT510-50PL, Infiniti FY-3278N, Infiniti FY-3276HA, Infiniti FY-3278F, Infiniti FY-3276R, Phoaeton UD-3278D, Phoaeton UD-3276E, Phoaeton UD-3278K

Remarks: Original

The Seiko SPT510 drop on demand piezo printhead is compatible with a wide-range of grand-format digital printers. Fully equipped with 510 active nozzles for high-resolution (720dpi) and high-speed (50 pl) printing and steel-plate protection for a longer life, this durable printhead lasts 4-5 times longer than many common128 printheads.

Specifications

Features

● Compatible Ink: Oil / UV / Solvent

● Number of Active Nozzles: 510

● Nozzle Pitch: 141.1[um] (Approx.1/180 [inch])

● Active Printing Width: Approx. 71.8 [mm]

● Native resolution: 180 dpi

● Jetting Frequency: 7 [kHz] (depending on ink and ink system)

● Drop Volume: 35 [pl] and 80 [pl] versions available

● Driving Interface: Parallel Interface

● Dimensions (W*H*D): 126,3 x 99,2 x 32,9 [mm]

● Dry Weight: 200 [g]

● Easy printhead Positioning: Datum points for X, Y and Z

● Print head Orientation: Downward, Horizontal and Vertical

● Ink Priming: by positive / negative pressure

● Heater: Individual heater element can be attached on the printhead
