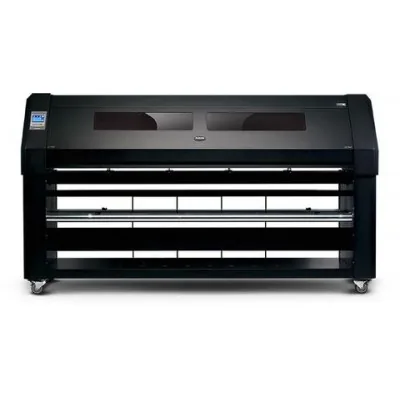

Summa DC5

Product Description

Summa DC5 - Print and Cut Specifications table { width: 100%; border-collapse: collapse; background-color: transparent; } th, td { padding: 12px; border: 1px solid transparent; text-align: left; } th { background-color: transparent; } td { background-color: transparent; }
Summa DC5 - Print and Cut Specifications

Description: The Summa DC5 is the ultimate all-in-one print-and-cut powerhouse. With its seventh-generation thermal transfer technology, it offers unrivaled outdoor durability, cost efficiency, and ease of use. The DC5 excels in producing dry, installation-ready graphics with up to 5 years of durability, without the need for lamination. The redesigned full-color touch-sensitive interface makes the DC5 even more versatile, and it offers unmatched speed and precision for both printing and cutting projects.

Model Summa DC5

Print/Cut Width 54-inch (137 cm)

Print Type Thermal Transfer

Print Speed Printing (standard mode): 93 Ft²/hour (8.7 m²) — Spot
Printing (high-resolution mode): 67 Ft²/hour (6.2 m²) — Spot
Printing (double-density mode): 58 Ft²/hour (5.4 m²) — Spot

Cut Speed 24 inches-per-second (600 mm/sec) max

Method Printing: Thermal transfer, using outdoor-durable process and spot color resin ribbons, mirror metallic ribbons (indoor use)
Cutting: Drag knife, using standard Summa D-Series blades

Resolution Printing: 609 x 304 dpi (24 x 12 dpmm) max hardware; 609 x 609 apparent dpi (24 x 24 dpmm) software
Cutting: 0.001" (0.025 mm), 0.005" (0.1 mm) selectable

Media Width Variable width: 20-inch, 24-inch, 30-inch, 39.37-inch, 48-inch, or 54-inch wide media

Production Width Up to 50.2 inches wide (127.5 cm) for both printing and cutting

Media Handling Motorized media supply rollers; built-in motorized media take-up system (available as factory upgrade options on DC5sx)

Media Drive Summa OptiTrac™ active-steering drive with variable-position traction-feed pinch rollers

Media Tracking Built-in optical laser tracking system

Memory 64 MB print processing RAM; 2 GB reprint storage

Connectivity USB; Ethernet

File Support EPS, PDF, and all generic PostScript

Power Requirements 100-240 Vac, 48-62 Hz, 85 VA max

Operating Environment 60°F to 80°F (15°C to 27°C), 30% to 75% relative humidity, non-condensing

Dimensions DC5 Shipping: 100.8" x 35" x 63" (256 x 88 x 160 cm)
DC5 Equipment: 90.6" x 24.8" x 51.2" (230 x 63 x 130 cm)

Weight DC5 Shipping: 800 lbs (360 kg)
DC5 Equipment: 550 lbs (250 kg)

Accessories Included ColorControl RIP + Cut Software
Print & Cut plug-in for CorelDRAW and Illustrator
8 SmartRibbon cassettes (DC5)
C, M, Y, and K Ribbons (1 each)
54” x 150’ White 3M Vinyl
Media Guide Flanges (set of 2)
OptiPrint™ Cleaning Roller Refill
Standard 36° Blade Holder and Blades
Cut-off Knife, Gloves, and More

Warranty One-year parts and labor limited warranty, toll-free technical support
