Summa DC5sx

Product Description

Summa DC5 - Thermal Transfer Printer Description table { width: 100%; border-collapse: collapse; background-color: transparent; } th, td { padding: 12px; border: 1px solid transparent; text-align: left; } th { background-color: transparent; } td { background-color: transparent; }
Summa DC5 - Thermal Transfer Printer Specifications

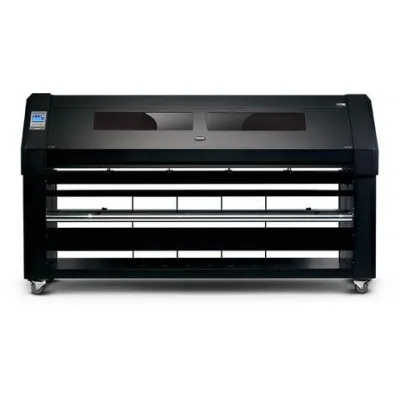

Description: The Summa DC5 is the ultimate all-in-one print-and-cut powerhouse, offering a revolutionary thermal transfer solution with superior durability, versatility, and ease of use. Capable of printing and cutting a wide range of materials, it delivers high-quality, outdoor-ready graphics without the hassle of inkjet printers. The Summa DC5 ensures smooth operation with minimal maintenance and powerful features designed for efficiency and longevity. Available in two sizes, it caters to all your graphic production needs while offering advanced capabilities for faster, more reliable results.

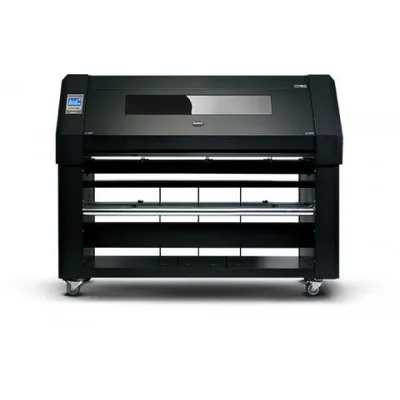

Model Summa DC5sx

Print/Cut Width 30-inch (76 cm)

Print Type Thermal Transfer

Print Speed Standard Mode: 93 Ft²/hr (8.7 m²) – Spot Color
High-Resolution Mode: 67 Ft²/hr (6.2 m²) – Spot Color
Double-Density Mode: 58 Ft²/hr (5.4 m²) – Spot Color

Cut Speed 24 inches-per-second (600 mm/sec) max

Print Method Thermal transfer, using spot color and resin ribbons, including mirror metallic ribbons (for indoor use)

Cutting Method Drag knife using Summa D-Series blades

Resolution Print: 609 x 304 dpi (24 x 12 dpmm) max hardware; 609 x 609 apparent dpi (24 x 24 dpmm) software
Cutting: 0.001″ (0.025 mm), 0.005″ (0.1 mm) selectable

Media Width Variable widths: 20-inch, 24-inch, 30-inch, 39.37-inch, 48-inch, 54-inch

Production Width Up to 26.4 inches (67 cm) for both printing and cutting

Media Handling Motorized media supply rollers; built-in motorized media take-up system (factory upgrade on DC5sx)

Media Tracking Optical laser tracking system

Memory 64 MB print processing RAM; 2 GB reprint storage

Connectivity USB; Ethernet

File Support EPS, PDF, and all generic PostScript

Power Requirements 100-240 Vac, 48-62 Hz, 85 VA max

Operating Environment 60°F to 80°F (15°C to 27°C), 30% to 75% relative humidity, non-condensing

Dimensions Shipping: 76.8″ x 35″ x 63″ (195 x 88 x 160 cm)
Equipment: 66.5″ x 24.8″ x 51.2″ (169 x 63 x 130 cm)

Weight Shipping: 639 lbs (290 kg)
Equipment: 430 lbs (195 kg)

Accessories Included ColorControl RIP + Cut Software, 5 SmartRibbon cassettes (DC5sx), C, M, Y, K Ribbons (1 each), 30” x 150’ White 3M Vinyl, Media Guide Flanges, OptiPrint™ Cleaning Roller Refill, Standard 36° Blade Holder, Drag Blades, Cut-off Knife, Media-Handling Gloves, Cleaning Swabs, USB Cable, Power Cord, Quick Start Guide, and more.

Warranty One-year parts and labor limited warranty, toll-free technical support
