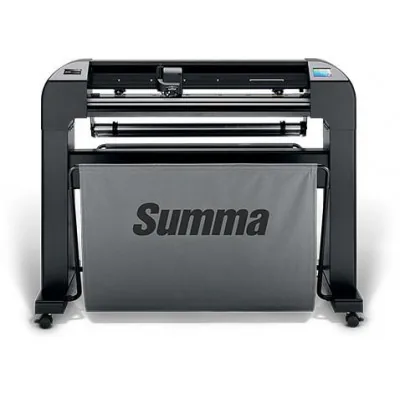

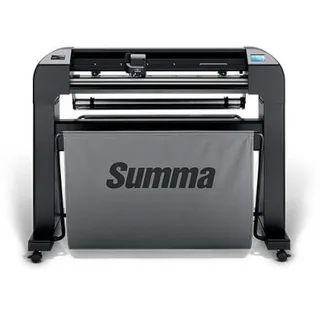

Summa OPOS-CAM S2 TC160

the perfect combination of speed and accuracy for high productivity contour cutting

Summa invented contour cutting in 1993. Since then, the technology has literally transformed the industry and become the single most important feature in vinyl cutting.

OPOS-CAM™ represents the fourth generation evolution of Summa's revolutionary OPOS contour cutting alignment system – a factory upgrade option now available on all new Summa S2 T75, S2 T140 and S2 T160 contour cutting plotters.

Precision-engineered to increase workflow efficiency when contour cutting printed graphics, signs, labels, vehicle wraps, decals and more, OPOS-CAM is the ideal choice for volume-driven environments that require ultra-fast yet meticulous automated cutting for short or long run jobs.

By combining advanced camera optics technology with Summa's highly intelligent CameraControl recognition software, OPOS-CAM scores lightning-fast marker-recognition speeds (10 times faster than competing systems) for a wide array of media, including laminate materials.

Coupled with Summa's state-of-the-art TrueTangential™ cutting head, all-powerful servomotors and exclusively patented MicroSprocket™ drive, Summa T Series operators experience unprecedented speed, confidence and accuracy - the kind of performance others can only dream about.

Model Specifications

MODELS S2 TC75 S2 TC140 S2 TC160

CUT TYPE True Tangential with OPOS-CAM and Drag Knife Cutting Mode Capability

CUT WIDTHS S2 TC75: 30-inch (76 cm) S2 TC140: 53.1-inch (135 cm) S2 TC160: 62.2-inch (158 cm), Extended Mode: width of the material

CUT SPEED All S2 models cut at speeds up to 56 inches (1414 mm) per second diagonal

AXIAL SPEED Up to 4 G

MAXIMUM ACCELERATION Up to 5.5 G diagonal

REPEATABILITY Within ± 0.004 in. (0.1 mm) on plots up to 40 ft. (12 m) long

TRACKING 164 ft. (50 m) long

CUT FORCE 0-600 grams of down-force, in 5 gram increments

DISPLAY LANGUAGE English; French; German; Dutch; Italian; Spanish; Polish; Czech; Latvian; Portuguese

CONNECTIVITY USB; Ethernet

POWER REQUIREMENTS AC 100V to 240V ±10% 48-62Hz, 85 VA maximum

DIMENSIONS S2 TC75: 55.5 (W) x 26.8 (D) x 43.7 (H) in. / 141 (W) x 68 (D) x 111 (H) cm S2 TC140: 73.6 (W) x 26.8 (D) x 43.7 (H) in. / 205 (W) x 68 (D) x 111 (H) cm S2 TC160: 88.6 (W) x 26.8 (D) x 43.7 (H) in. / 225 (W) x 68 (D) x 111 (H) cm

WEIGHT S2 TC75: 152 lbs (69 kg) S2 TC140: 214 lbs (98 kg) S2 TC160: 251 lbs (114 kg)

OPERATING TEMPERATURE 59˚ to 95˚F (15˚ to 35˚C)

STANDARD ACCESSORIES WinPlot or MacSign Cut Software, CutterControl Parameter Software, CD w/ Manuals and Drivers, Quick Start Guide, Power Cable, USB Cable, Media Guide Flanges (set of 2), 1 Spare Fuse, Blade Holder, Standard Nose Piece, 2 Standard 36° Tangential Blades, Thick Material Nose Piece, 1 Thick 60° Blade, Tangential Drag Holder, 1 Standard 36° Drag Blade, Pouncing Pin and Holder, T Pen holder, 1 Ball point pen, Pouncing and Pen Nose Piece, 2 Cut-off Razor Blades, Blade insertion tool, Stand and Basket.

OPERATIONAL ACCESSORIES Motorized Take-Up Roller for Summa S2 140 and S2 160, Media Rack for Summa S Class S2 140 and S2 160

WARRANTY (USA) Three-year parts and labor limited warranty, toll-free technical support
