Summa OPOS-CAM S2 TC75

Product Description

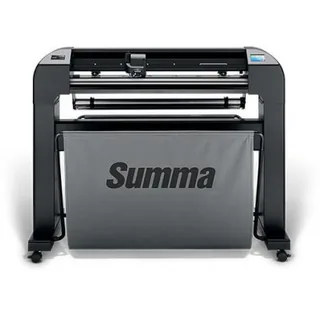

Summa OPOS-CAM S2 TC75

The perfect combination of speed and accuracy for high productivity contour cutting

Summa invented contour cutting in 1993. Since then, the technology has transformed the industry and become the most important feature in vinyl cutting.

OPOS-CAM™ represents the fourth generation evolution of Summa's revolutionary OPOS contour cutting alignment system – a factory upgrade option available on all new Summa S2 TC75, S2 TC140, and S2 TC160 contour cutting plotters.

OPOS-CAM is ideal for high-volume environments, offering ultra-fast and precise automated cutting for both short and long-run jobs, with cutting-edge camera optics technology and intelligent software.

Feature S2 TC75 S2 TC140 S2 TC160

Models S2 TC75 S2 TC140 S2 TC160

Cut Type True Tangential with OPOS-CAM and Drag Knife Cutting Mode Capability

Cut Widths 30-inch (76 cm) 53.1-inch (135 cm) 62.2-inch (158 cm), Extended Mode: width of the material

Cut Speed Up to 56 inches (1414 mm) per second diagonal

Axial Speed Up to 4 G

Max Acceleration Up to 5.5 G diagonal

Repeatability Within ± 0.004 in. (0.1 mm) on plots up to 40 ft. (12 m) long

Tracking 164 ft. (50 m) long

Cut Force 0-600 grams of down-force, in 5 gram increments

Display Language English; French; German; Dutch; Italian; Spanish; Polish; Czech; Latvian; Portuguese

Connectivity USB; Ethernet

Power Requirements AC 100V to 240V ±10% 48-62Hz, 85 VA maximum

Dimensions 55.5 (W) x 26.8 (D) x 43.7 (H) in. (141 x 68 x 111 cm) 73.6 (W) x 26.8 (D) x 43.7 (H) in. (205 x 68 x 111 cm) 88.6 (W) x 26.8 (D) x 43.7 (H) in. (225 x 68 x 111 cm)

Weight 152 lbs (69 kg) 214 lbs (98 kg) 251 lbs (114 kg)

Operating Temperature 59˚ to 95˚F (15˚ to 35˚C)

Warranty (USA) Three-year parts and labor limited warranty, toll-free technical support
