Summa S75

Product Description

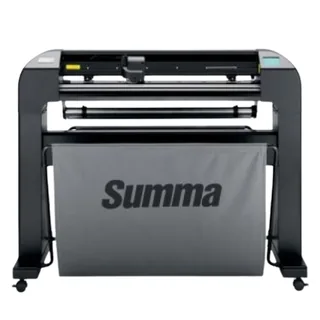

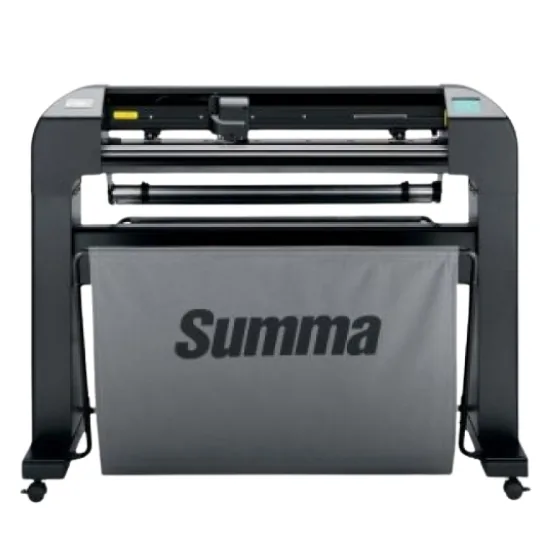

Summa S75

The versatile new 30-inch Summa S75 T Series gives you Summa S Class power and precision with a state-of-the-art TrueTangential™ cutting head. It employs our most powerful servomotors yet and Summa's MicroSprocket™ drive to let you cut with amazing speed, confidence and precision. Coupled with an astonishing array of innovations and built-in capabilities, Summa S Class does more than any other cutter in its class.

Summa S75

Technical Specs & Details

SpecificationsSumma S75

TYPE75 cm (30 in.) tangential-knife, friction feed

SPEEDUp to 1000 mm/sec. (40 in./sec.) axial;
Up to 1414 mm/sec. (56 in./sec) diagonal

CUTTING AREA74.2 cm x 50 m (29.2 in. x 164 ft.) maximum

ACCELERATIONUp to 4 g axial;
Up to 5.5 g diagonal

KNIFE
PRESSURE0-600 grams, in 5-gram increments

ADDRESSABLE
RESOLUTION0.025 mm, 0.1 mm selectable (Metric);
0.001 in., 0.005 in. selectable (English)

REPEATABILITYWithin +/- 0.1 mm (0.004 in.) on plots up to 12 m (40 ft.) long

TOOL
COMPATIBILITYStandard knife for vinyl, reflective and fluorescent films;
Thick material knife for sandblast resist and other films up to 1.2 mm (0.047") thick;
Double-tip knife for heavy-duty materials;
Ballpoint pen for plotting on paper;
Pounce tool for pouncing on paper

MEDIA
WIDTHS6 to 84 cm (2.4 to 33 in.)

MEDIA
LENGTH50 m (164 ft.) maximum

MEDIA
THICKNESSUp to 0.25 mm (0.01 in.) with standard knife;
Up to 1.2 mm (0.047 in.) with thick material knife;
Up to 0.25 mm (0.01 in.) reflective and other hard-to-cut materials with double-tip knife

MEMORY16 MB

INTERFACEUSB 1.1 and Serial RS-232C

DISPLAY
LANGUAGESEnglish; French; German; Dutch; Italian; Spanish; Polish

CUTTER
LANGUAGESSumma DM/PL, HP-GL or HP-GL2 (with selectable origin ; HP7475 and HP 7580/7585)

POWER
REQUIREMENTS100-240 Vac, 48-62 Hz, 85 VA maximum

OPERATING
ENVIRONMENT15° to 35° Celsius (59° to 95° Fahrenheit);
35 to 80% relative humidity (non-condensing)

DIMENSIONS
(W x D x H)141 x 68 x 111 cm (55.5 x 26.8 x 43.7 in.)

SHIPPING
WEIGHT69 kg (152 Lbs.)

ACCESSORIES
INCLUDED2 standard knife blades and standard nose peice
1 thick material knife and thick material nose piece
Blade holder for standard, thick material and double-tip knife (requires matching nose piece)
Ballpoint pen with pen holder
Power cord
Serial interface cable (PC) and USB Cable (PC/Mac)
Quick start guide (English, French, German, Italian, Spanish and Dutch)
User's manual and drivers on CD-ROM
Summa Cutter Control™ software (for controlling cutter settings)
WinPlot™ (PC) and MacSign Cut (Mac) cutting programs
Cutting plug-in for CorelDRAW 10 thru X3 and Illustrator CS and CS2

Accessories

Standard Features & Accessories

- OPOS™ X contour-cutting alignment system
- Stand with adjustable front and rear media baskets
- Media supply rollers with media end flanges
- Media cutoff system
- Automatic interface selection
- Selectable origin
- Variable knife-tip offset (0-1 mm / 0-0.04")
- 8 user-definable configurations
- Autoload feature
- Adjustable pinch roller pressure
- Dual protection strips (cut and pounce)
- Overcut feature (for easier weeding)
- Flex-cut feature (for cutting completely through the media)
- OPTiCUT™ and TurboCut™ performance enhancement modes (when operating in drag-blade mode)
- Vector look-ahead
- Curve and arc smoothing
- Diagnostic routines

Summa S75

Warranty Information

2 Years.
