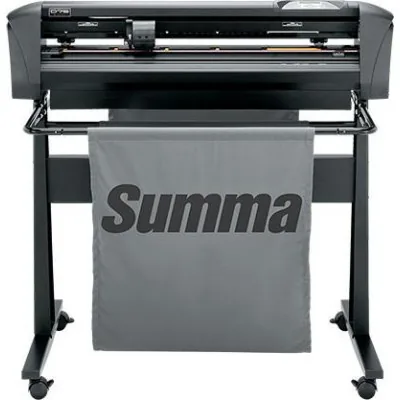

SummaCut D140

Product Description

Vinyl cutters that set the industry standard for performance and value

Evolution of the SummaCut

Since 1996, SummaCut has evolved to become the world's most advanced performance-price leader. Introduced to the world in 1999 and meticulously refined since, the latest generation SummaCut is the product of Summa's brilliant European engineering and decades of experience.

Numerous improvements have been incorporated into this latest version, including a newly designed high-speed cutter head with built-in OPOS-X technology (Summa's unrivaled Optical Positioning Sensor).

Combining the world's most reliable sensor technology with highly complex algorithms allows SummaCut to effectively compensate for any print deformations and deliver spot-on contour cutting every time. Its outstanding registration-mark recognition capabilities apply not only to standard materials but also reflective, holographic and metallic materials, as well as many of the laminates being used today.

Built to withstand the daily punishment of busy production environments, SummaCut vinyl cutters are ideal for value-minded graphics professionals who are unwilling to compromise their quality standards. The versatility of this series makes it ideal for cutting signs, vehicle lettering, die cut decals, labels and more.

SummaCut Engineering

Summa engineers understand that the most important vinyl cutter feature is tracking. That’s why every cutter we build features our exclusive, patented MicroSprocket™ media transport rollers. Milled from the finest materials, in a unique process that assures an exacting diameter, each roller is specially coated to eliminate the risk of wear and oxidation that can degrade tracking over time.

MODEL D75 D120 D140 D160

CUT TYPE Drag knife with TurboCut and Tangential Emulation Modes

TOOL COMPATIBILITY Blade, Pen, Pounce Tool

CUT WIDTHS 29.2-inch (74.2 cm) 47.2-inch (120 cm) 53.1-inch (135 cm) 62.2-inch (158 cm)

CUT SPEED Up to 44 inches (112 cm) per second diagonal

AXIAL SPEED Up to 2 G

MAXIMUM ACCELERATION Up to 3 G diagonal

REPEATABILITY Within ± 0.004 in. (0.1 mm) on plots up to 26 ft. (8 m) long

TRACKING 164 ft. (50 m) long

CUT-FORCE 0-400 grams of down-force, in 5 gram increments

REPLOT MEMORY 4 MB (buffer size: 16 MB)

DISPLAY LANGUAGES English; French; German; Dutch; Italian; Spanish; Polish

CONNECTIVITY USB

POWER REQUIREMENTS AC 100V to 240V ±10% 50-60Hz, 85 VA maximum

DIMENSIONS 45.3 (W) x 13.8 (D) x 11.8 (H) in. 115 (W) x 35 (D) x 30 (H) cm 63 (W) x 26.8 (D) x 44.1 (H) in. 160 (W) x 68 (D) x 112 (H) cm 68.9 (W) x 26.8 (D) x 45.1 (H) in. 175 (W) x 68 (D) x 114.5 (H) cm 77.9 (W) x 26.8 (D) x 45.1 (H) in. 198 (W) x 68 (D) x 114.5 (H) cm

WEIGHT 37 lbs (17 kg) 92 lbs (42 kg) 106 lbs (48 kg) 119 lbs (54 kg)

OPERATING TEMPERATURE 59˚ to 95˚F (15˚ to 35˚C)

STANDARD ACCESSORIES WinPlot or MacSign Cut Software, CutterControl Parameter Software, CD w/ Manuals and Drivers, Quick Start Guide, Power Cable, USB Cable, Media Guide Flanges (set of 2), 1 Spare Fuse, Standard 36˚ Blade Holder, 2 Standard 36˚ Blades, Cut-off Knife (Manual Slitter), 2 Cut-off Razor Blades.

OPTIONAL ACCESSORIES Stand and basket for SummaCut D75

WARRANTY (USA) Two-year parts and labor limited warranty, toll-free technical support
