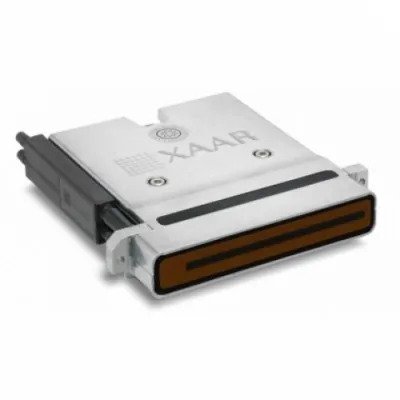

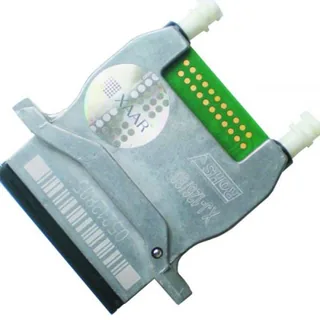

Xaar 501 GS8 Printhead

Product Description

Xaar 501 GS8U

Xaar 501 GS8O

Xaar 501 GS8R

Active nozzles

500

500

500

Print swathe width

70.5 mm

70.5 mm

70.5 mm

Number of rows

1

1

1

Nozzle pitch

141.1 µm

141.1 µm

141.1 µm

Drop velocity*

6 m/s

6 m/s

7 m/s

Nozzle density (nozzles per inch)

180 npi

180 npi

180 npi

Printhead weight (dry)

205 g

205 g

196 g

Ink types

UV, Oil

Solvent, Oil

UV, Solvent, Oil

Drop volume (at 4 levels)*

8-30 pL

8-30 pL

8-30 pL

TF Technology™ modes

None, Pulsed

None, Pulsed

High Flow

Number of grey levels*

4

4

4

Typical firing frequency*

12-27 kHz

10-16 kHz

12-27 kHz

Dimensions (WxDxH)

104x17x113 mm†

104x17x113 mm†

104x17x100 mm

* Dependant on ink used and system integration

Includes filter module (no filter module supplied with Xaar 501 GS8R variant)
