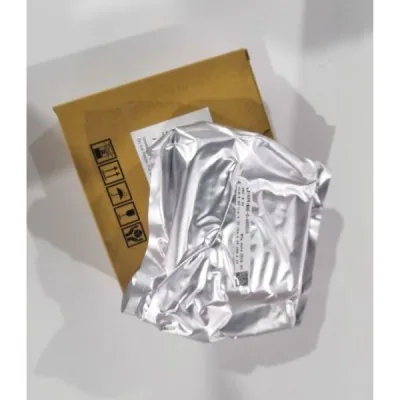

Xaar 502 GS15 S 360 Printhead XP50200011

Product Description

Xaar 502 GS15 S 360 Printhead - XP50200011

The new Xaar 502 printhead reaches higher levels of performance in inkjet graphics. Whether printing large exterior banners or indoor point-of-sale material, this premium printhead delivers exceptional print quality, excellent reliability and high production up-time. Value added effects such as printing on transparent or coloured substrates or adding varnishes are made easy with the Xaar 502.

The new and unique PrecisionPlus™ architecture of the Xaar 502 builds on Xaar’s incredibly successful Hybrid Side Shooter™ architecture. This new architecture optimises the actuator performance giving more uniform drop formation across the print swathe and therefore exceptional print quality for stunning graphics.

PrecisionPlus architecture flips the PZT’s (Piezo actuators) supporting substrate on its side so the PZT is on the edge of a rigid block of substrate. This architecture means that there is more stiffness in the z axis (better support for the PZT).

The Xaar 502 GS15 S 360 is suitable for solvent-based printers with a vacuum (gravity) fed mode ink system. The last chance ink filter fitted on the inlet port avoids particules, debris or air bubbles get into the printhead.

The Xaar 502 GS15 S 360 has a WFG (wide format graphic) nozzle guard which is closer to the actuator providing protection from substrate damage. This nozzle guard wraps around the front of the actuator.

The Xaar 502 GS15 S 360 can be used as a replacement to Xaar Proton 35pl printheads (discontinued). An ICM (Interface connection module) enables Xaar Proton 35pl based printers to communicate with Xaar 502 printheads. The ICM requires a waveform loaded onto it by Xaar.

Specifications

Active nozzles : 500

Print swathe width : 70,5mm

Number of rows : 1

Nozzle density : 180 Npi

Nozzle Guard : WFG

Ink types : Solvent

Drop volume : 40pl

Number of grey level* : 6

Filter : Yes (Last chance filter)

Heater : No

TF Technology® mode : None

Typical firing frequency @ Max DPD*: 7khz

Dimensions (WxDxH) : 104 x 17 x 113mm

Jetting orientation : Downshooter (see picture)

Inlet / Outlet connections : Hose barb 4mm

Dependant on ink used and system integration

Compatible Printers

Wit-Color

Ultra 2000
