Xaar Print Manager XPM-12 - XP55500032

Product Description

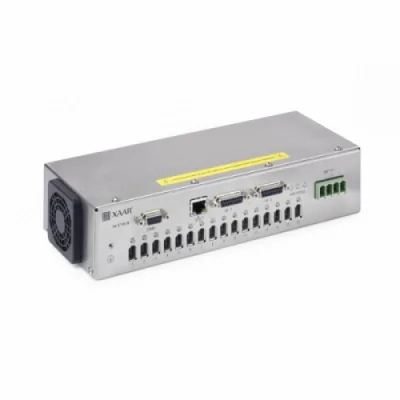

Xaar Print Manager XPM-12 - XP55500032

The Xaar Print Manager (XPM) delivers the high performance and advanced functionality expected by designers of today’s highly innovative industrial inkjet printers. As single-pass and scanning applications become more complex and users demand that printers handle more and larger images, the performance of the data management system becomes a critical element.

The XPM provides a high speed, reliable data conduit between the processed image data and Xaar printheads. Available in two configurations, the XPM12 and XPM16 provide the ultimate in scalability and flexibility allowing integrators to create cost effective solutions. The XPM is a powerful data processing building block meaning there is no limit to the number of printheads that can be supported by a single computer.

Industry standard Gigabit Ethernet connectivity allows off-the-shelf switches and network cards to be used to reliably network XPMs together and enhance performance from the external PC. The proven hardware and software package used with the XPM ensures optimal printhead operation, reduces time-to-market and minimises the costs involved with developing industrial printers.

Specification XPM12

Maximum number of printheads: 12

Printhead types supported: Xaar 1001, Xaar 1002, Xaar 1003, Xaar 501, Xaar 2001 and Xaar 2001+

Print buffering memory: 4 GB per XPM

Product detect inputs: 4

Shaft encoder inputs: 4

Operating modes: Single shot, back to back, fixed gap continuous (all with optional soft stop)

Variable data support: Yes, streaming

Weight: 122 g

Dimensions (WxDxH): 280x116x63 mm

Supply voltage*: 24-30 V

Supply power rating*: Up to 28 A

Printhead maintenance: Printhead power control and idle spit

Application types: Uni/Bi-directional scanning, single-pass web and labelling

Operating system support: 64 bit Windows 7 and Windows 8

Programming interface; Xaar Scorpion API via Windows etc
